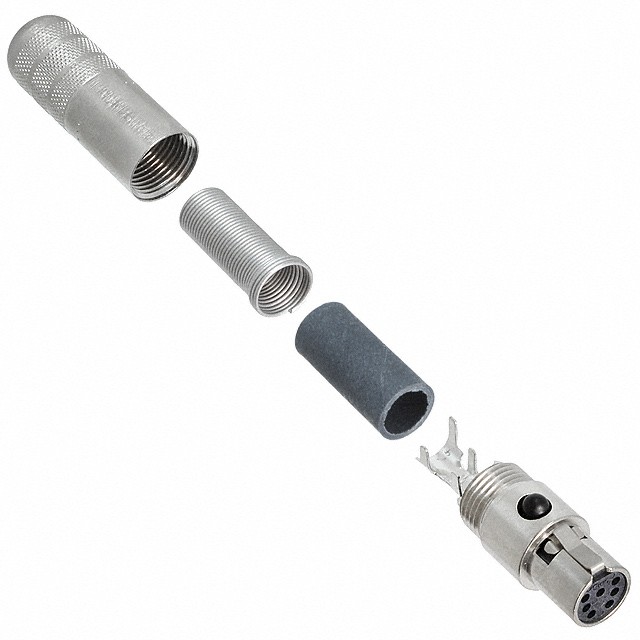

TA7FSHF

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 7P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 7P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TA7FSHF

Applications	Audio, Medical
Backshell Material, Plating	Copper Alloy, Nickel
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Shielding	Shielded
Termination	Solder
Voltage Rating	125 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Contact Finish - Mating	Color	Mounting Type	Contact Material	Primary Material	Connector Type	Current Rating (Amps)	Insert Material	Backshell Material, Plating	Shell Material	Number of Positions	Shielding	Shell Finish	Orientation	Fastening Type	Applications	Features	Voltage Rating	Termination	Material Flammability Rating
Switchcraft Inc. TA7FSHF	85 °C	-55 °C	Mini XLR	Silver	Silver	Free Hanging (In-Line)	Copper Alloy	Metal	Female Sockets Plug	1.5 A	Thermoplastic	Copper Alloy Nickel	Copper Alloy	7	Shielded	Nickel	Keyed	Latch Lock	Audio Medical	Backshell Cable Clamp Ground Strain Relief	125 VAC	Solder	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Plug, Female Sockets Solder
