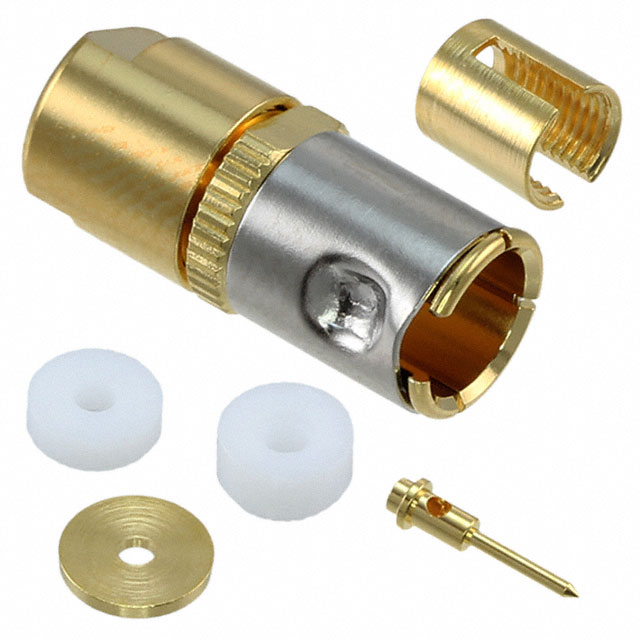

MSS-P-196/U(40)

Obsolete

Hirose Electric USA, Inc.

CONN MSS PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN MSS PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	MSS-P-196/U(40)

Body Finish	Gold
Body Material	Brass
Cable Group	RG-196
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MSS
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	1 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	3000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Crimp

Part	Housing Color	Center Contact Material	Frequency - Max [Max]	Center Contact Plating	Connector Style	Contact Termination	Mating Cycles	Fastening Type	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Type	Impedance	Connector Type	Number of Ports	Body Material	Shield Termination	Cable Group	Dielectric Material
Hirose Electric USA, Inc. MSS-P-1.5(41)
Hirose Electric USA, Inc. MSS-P-1.5DV	Gold	Brass	1 GHz	Gold	MSS	Solder	3000	Snap-On	Gold	85 °C	-40 °C	150 VDC	Free Hanging (In-Line)	50 Ohms	Male Pin Plug	1	Brass	Crimp	1.5D-2V	Polytetrafluoroethylene (PTFE)
Hirose Electric USA, Inc. MSS-P-196/U(40)	Gold	Brass	1 GHz	Gold	MSS	Solder	3000	Snap-On	Gold	60 °C	-30 ░C		Free Hanging (In-Line)	50 Ohms	Male Pin Plug	1	Brass	Crimp	RG-196	Polytetrafluoroethylene (PTFE)
Hirose Electric USA, Inc. MSS-P-1.5(40)	Gold	Brass	2 GHz	Gold	MSS	Solder	3000	Snap-On	Gold	85 °C	-40 °C		Free Hanging (In-Line)	50 Ohms	Male Pin Plug	1	Brass	Crimp	1.5D-2V	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MSS Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
