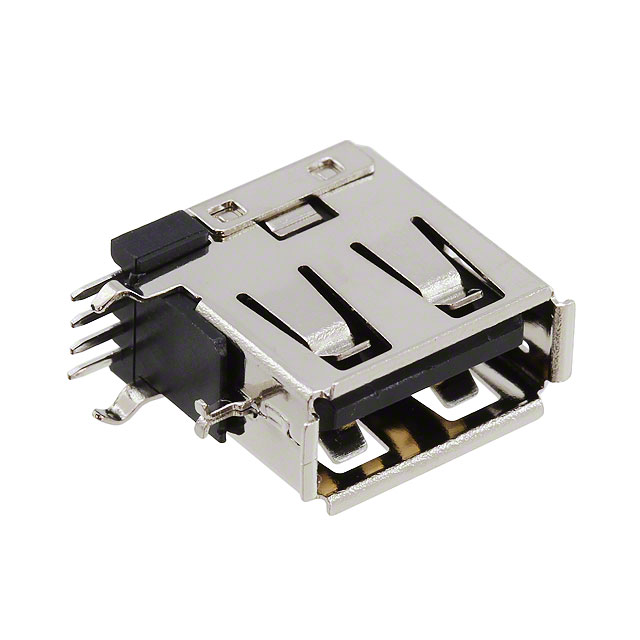

1001-008B-01001
ObsoleteCnC Tech, LLC
CONN RCPT USB1.1 TYPEA 4POS R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1001-008B-01001
ObsoleteCnC Tech, LLC
CONN RCPT USB1.1 TYPEA 4POS R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1001-008B-01001 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Vertical, Flag |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Shell/Shielding Material | Brass |
| Specifications | USB 1.1 |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.38 | |
| 10 | $ 1.16 | |||
| 25 | $ 1.12 | |||
| 40 | $ 1.09 | |||
| 80 | $ 1.04 | |||
| 230 | $ 0.95 | |||
| 440 | $ 0.85 | |||
Description
General part information
1001-008 Series
USB-A (USB TYPE-A) USB 1.1 Receptacle Connector 4 Position Through Hole, Right Angle
