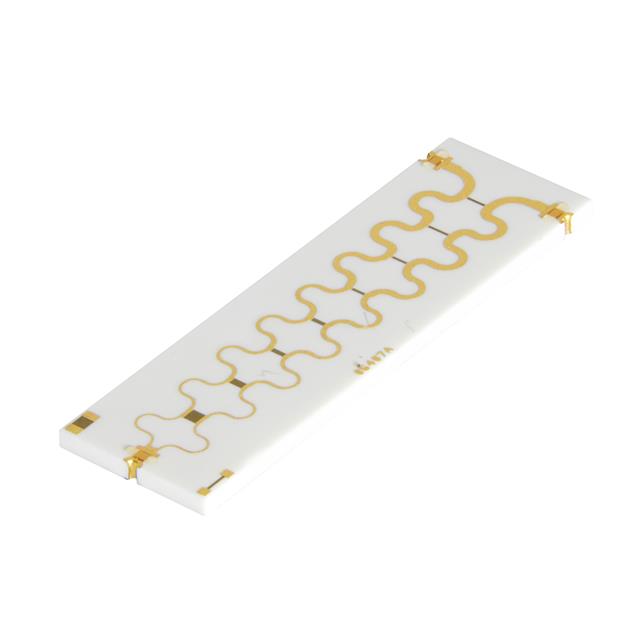

PDW06407-T
ActiveKnowles Johanson Manufacturing
2-18GHZ 2-WAY SMD WILKINSON POWE
Deep-Dive with AI
Search across all available documentation for this part.
PDW06407-T
ActiveKnowles Johanson Manufacturing
2-18GHZ 2-WAY SMD WILKINSON POWE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PDW06407-T |
|---|---|
| Frequency [Max] | 18 GHz |
| Frequency [Min] | 2 GHz |
| Insertion Loss | 2.5 dB |
| Package / Case | Module |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [x] | 15.24 mm |
| Size / Dimension [y] | 4.57 mm |
| Size / Dimension [y] | 0.18 in |
| Size / Dimension [z] | 0.02 " |
| Size / Dimension [z] | 0.51 mm |
| Specifications | 18 Pieces, 20 dB |
| Specifications [Max] | 5 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 70.49 | |
| 10 | $ 57.48 | |||
| 25 | $ 52.99 | |||
| 50 | $ 49.83 | |||
| 100 | $ 49.59 | |||
| Digi-Reel® | 1 | $ 70.49 | ||
| 10 | $ 57.48 | |||
| 25 | $ 52.99 | |||
| 50 | $ 49.83 | |||
| 100 | $ 49.59 | |||
| Tape & Reel (TR) | 300 | $ 49.59 | ||
Description
General part information
PDW06407 Series
RF Power Divider 2 GHz ~ 18 GHz Isolation (Typ) 20dB, 18dB Return Loss, 5° Imbalance (Max) Module
Documents
Technical documentation and resources
No documents available
