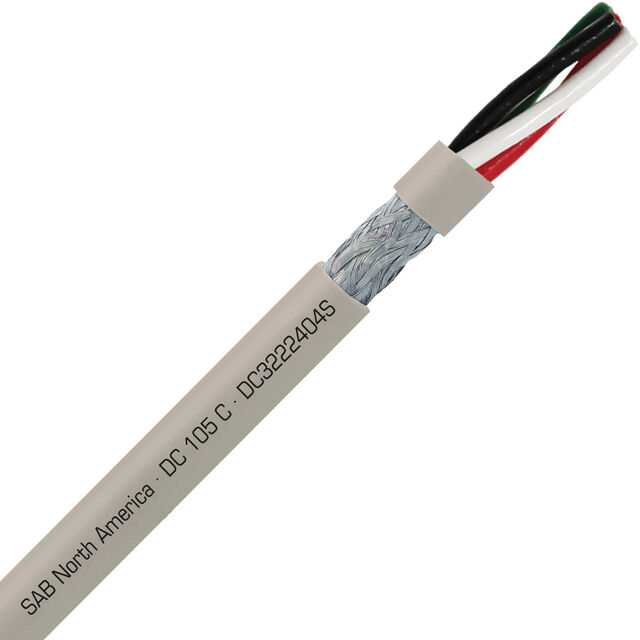

DC3222404S

Active

SAB North America

CABLE 4COND 24AWG GRY SHLD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 4COND 24AWG GRY SHLD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3222404S

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.209 in
Jacket (Insulation) Diameter [diameter]	5.31 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Shield Type	Number of Conductors	Features	Length	Jacket Color	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Wire Gauge
SAB North America DC3222404S	Copper Tinned	0.209 in	5.31 mm	Poly-Vinyl Chloride (PVC)	Multi-Conductor	32 AWG	7	300 V	Braid Foil	4	Drain Wire	Enter Number of Feet in Order Quantity	Gray	Poly-Vinyl Chloride (PVC)	-25 °C	105 ░C	Copper Tinned	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 24 AWG Foil, Braid Enter Number of Feet in Order Quantity
