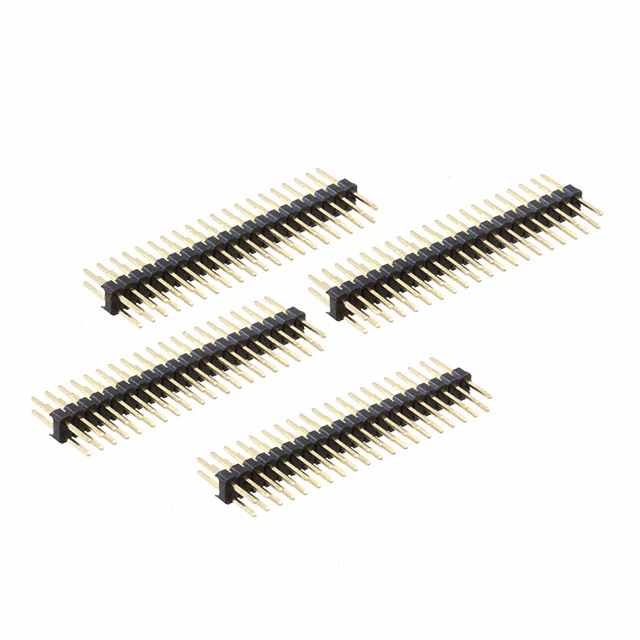

920-0198-01
ActiveSchmartboard, Inc.
CONN HEADER VERT 40P 2.54MM 4PC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
920-0198-01
ActiveSchmartboard, Inc.
CONN HEADER VERT 40P 2.54MM 4PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 920-0198-01 |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.00 | |
Description
General part information
920-0198 Series
Connector Header Through Hole 40 position 0.100" (2.54mm)
