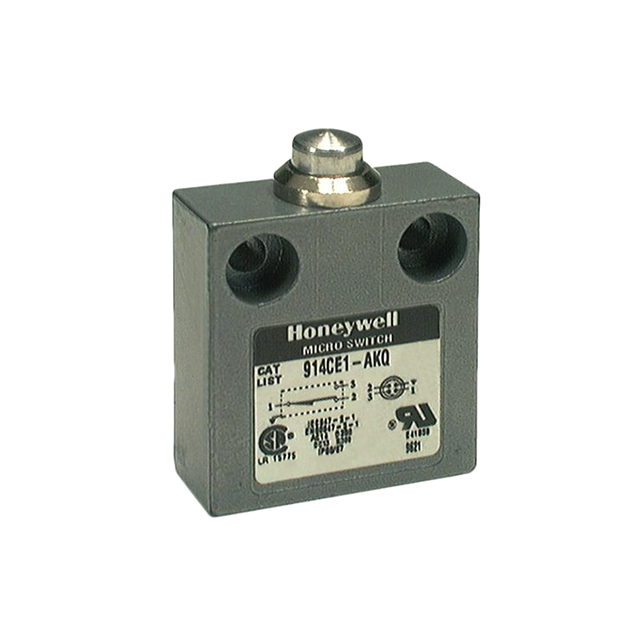

14CE101-6

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 240V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 240V

Technical Specifications

Parameters and characteristics for this part

Specification	14CE101-6

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.1 mm
Differential Travel	0.004 in
Features	Explosion Proof
Features [x]	6 m
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	1200 gf
Operating Position	15.7 mm
Operating Position	0.618 in
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Overtravel	3 mm
Overtravel	0.118 in
Pretravel	0.071 in
Pretravel	1.8 mm
Release Force	450 gf
Switch Function	On-Mom
Termination Style	Cable Leads
Voltage Rating - AC	240 V

Part	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Features	Features [x]	Switch Function	Mounting Type	Voltage Rating - AC	Actuator Type	Pretravel	Pretravel	Current Rating (Amps)	Circuit	Operating Position	Operating Position	Operating Force	Ingress Protection	Termination Style	Differential Travel	Differential Travel	Release Force	Overtravel	Overtravel
Honeywell Sensing and Productivity Solutions 14CE101-6	10000000 Cycles	70 °C	0 °C	Explosion Proof	6 m	On-Mom	Chassis Mount	240 V	Round (Pin Plunger)	0.071 in	1.8 mm	5 A	SPDT	15.7 mm	0.618 in	1200 gf	IP65 - Dust Tight Water Resistant	Cable Leads	0.1 mm	0.004 in	450 gf	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
