0026A0024-9X
UnknownTE Connectivity Aerospace, Defense and Marine

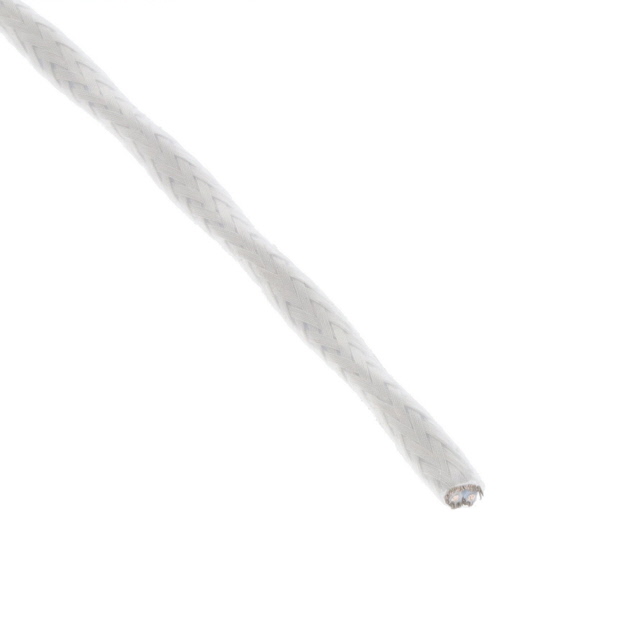

CABLE TWINAXIAL 26AWG 1'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0026A0024-9X
UnknownTE Connectivity Aerospace, Defense and Marine
CABLE TWINAXIAL 26AWG 1'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0026A0024-9X |
|---|---|
| Cable Type | Twinaxial |
| Conductor Material | Copper Alloy, Silver Coated |
| Conductor Strand | 38 AWG, 19 |
| Dielectric Diameter [diameter] | 1.19 mm |
| Dielectric Diameter [diameter] | 0.047 in |
| Dielectric Material | Fluorinated Ethylene Propylene (FEP) |
| Impedance | 100 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.135 in |
| Jacket (Insulation) Diameter [diameter] | 3.43 mm |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Length | 25 ft, 50 ft, 6000 in |
| Length | 7.62 m, 15.24 m, 152.4 m |
| Length [x] | 100 ft, 1 ft |
| Length [x] | 30.48 m, 300 mm |
| Shield Coverage | 90 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| VoP, Velocity of Propagation | 73 |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 0.10 | |
| 1 | $ 5.70 | |||
| 1 | $ 24.96 | |||
| 2 | $ 0.05 | |||
| 3 | $ 0.03 | |||
| 3 | $ 23.05 | |||
| 5 | $ 0.02 | |||
| 5 | $ 22.29 | |||
| 7 | $ 21.78 | |||
| 7 | $ 0.01 | |||
Description
General part information
0026 Series
Twinaxial Cable 26 AWG 1.0' (0.30m) 100 Ohms
Documents
Technical documentation and resources
