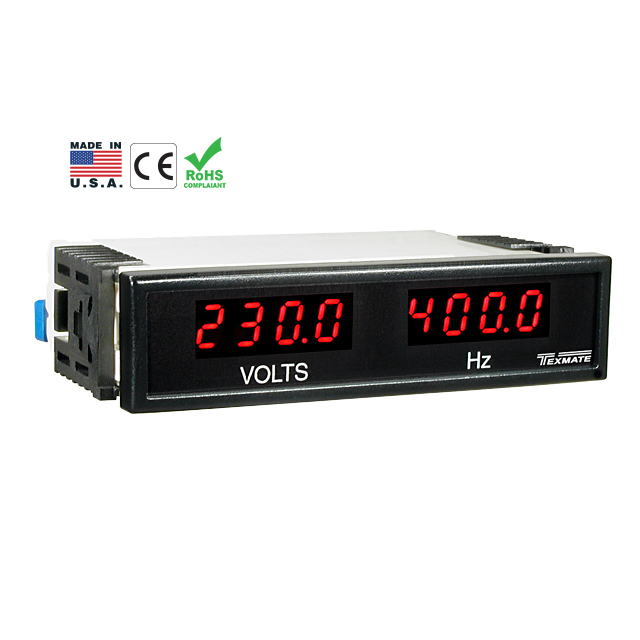

DD-40VHZ
ActiveTexmate
ACV & HZ DUAL 4 DIGIT DISPLAY 00
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DD-40VHZ
ActiveTexmate
ACV & HZ DUAL 4 DIGIT DISPLAY 00
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DD-40VHZ |
|---|---|
| Display Characters - Height | 7.62 mm |
| Display Characters - Height | 0.3 in |
| Display Type | LED - Red Characters |
| Measuring Range [Max] | 350 VAC, 450 Hz |
| Measuring Range [Min] | 30 VAC, 200 Hz |
| Measuring Type | Frequency, Voltage |
| Number of Characters Per Row | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [x] | 96 mm |
| Panel Cutout Dimensions [y] | 24 mm |
| Termination Style | Screw Terminal |
| Type | Frequency Meter, Voltmeter |
| Voltage - Supply [Max] | 380 VDC, 265 VAC |
| Voltage - Supply [Min] | 90 VDC, 85 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 422.00 | |
Description
General part information
DD-40VH Series
Voltmeter, Frequency Meter LED - Red Characters Display Panel Mount
