L717HDEH15POL2RM8

Active

Amphenol ICC (Commercial Products)

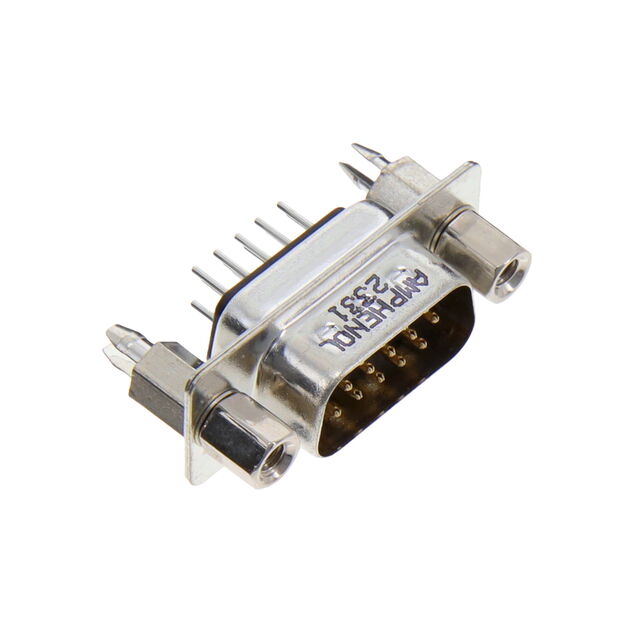

CONN D-SUB HD PLUG 15P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717HDEH15POL2RM8

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 15P VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717HDEH15POL2RM8

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	250 VDC

L717HDEH15 Series

Part	Features	Contact Finish	Contact Finish Thickness	Number of Positions	Color	Dielectric Material	Material Flammability Rating	Mounting Type	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Material	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Voltage Rating	Connector Style	Number of Rows	Contact Form	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]
Amphenol ICC (Commercial Products) L717HDEH15POL2RM8	Board Lock Grounding Indents	Gold	Flash	15	Black	Thermoplastic Glass Filled	UL94 V-0	Through Hole	Board Side (4-40) Mating Side Female Screwlock (4-40)	105 ░C	-55 °C	Solder	Brass	3 A	DE E	1	High Density	Signal	250 VDC	D-Sub High Density	3	Stamped	Male Pins Plug
Amphenol ICC (Commercial Products) L717HDEH15POL2	Grounding Indents	Gold	Flash	15	Black	Thermoplastic Glass Filled	UL94 V-0	Through Hole	4-40 Board Side	105 ░C	-55 °C	Solder	Brass	3 A	DE E	1	High Density	Signal	250 VDC	D-Sub High Density	3	Stamped	Male Pins Plug
Amphenol ICC (Commercial Products) L717HDEH15POL2RM8C309	Board Lock Grounding Indents	Gold		15	Black	Thermoplastic Glass Filled	UL94 V-0	Through Hole	Board Side (4-40) Mating Side Female Screwlock (4-40)	105 ░C	-55 °C	Solder	Brass	3 A	DE E	1	High Density	Signal	250 VDC	D-Sub High Density	3	Stamped	Male Pins Plug	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717HDEH15PVF	Grounding Indents	Gold	Flash	15	Black	Thermoplastic Glass Filled	UL94 V-0	Through Hole	Board Side (4-40) Mating Side Female Screwlock (4-40)	105 ░C	-55 °C		Brass	3 A	DE E	1	High Density	Signal	250 VDC	D-Sub High Density	3	Stamped	Male Pins Plug			24 AWG	30 AWG
Amphenol ICC (Commercial Products) L717HDEH15P	Grounding Indents	Gold	Flash	15		Thermoplastic Glass Filled	UL94 V-0	Free Hanging (In-Line)	Cable Side	155 °C	-55 °C		Brass	3 A	DE E	1	High Density	Signal	250 VDC	D-Sub High Density	3	Stamped	Male Pins Plug
