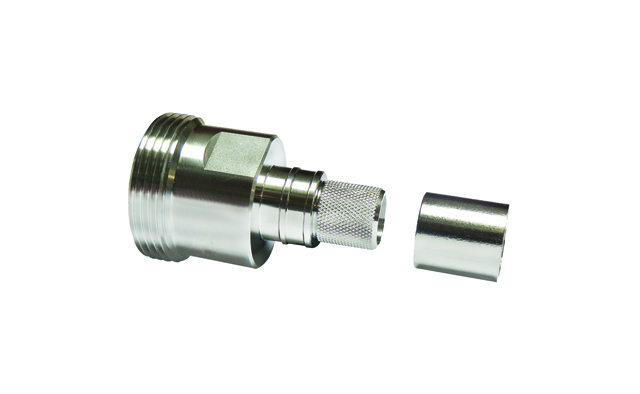

TC-500-716M-X

Active

Amphenol Times Microwave Systems

7/16 DIN MALE CRIMP, NO BRAID TR

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

7/16 DIN MALE CRIMP, NO BRAID TR

Technical Specifications

Parameters and characteristics for this part

Specification	TC-500-716M-X

null

Part	Connector Type	Contact Termination	Mounting Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Cable Group	Connector Style	Center Contact Plating	Housing Color	Frequency - Max [Max]	Shield Termination	Center Contact Material	Impedance	Number of Ports	Mating Cycles	Body Material	Voltage Rating
Amphenol Times Microwave Systems TC-500-TM-X	Male Pin Plug	Solder	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	-55 °C	125 °C	White Bronze	LMR-500	TNC	Gold	Silver	6000 MHz	Crimp	Brass	50 Ohms	1	500	Brass
Amphenol Times Microwave Systems TC-500-NMH-RA-D	Male Pin Plug	Solder	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	-55 °C	155 °C	White Bronze	LMR-500	N Type	Gold	Silver	6000 MHz	Crimp	Brass	50 Ohms	1	500	Brass	500 V
Amphenol Times Microwave Systems TC-500-4310M-LP
Amphenol Times Microwave Systems TC-500-716F-LP
Amphenol Times Microwave Systems TC-500-716M-RA-D	Male Pin Plug	Solder	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	-40 °C	125 °C	White Bronze	LMR-500	7/16 DIN	Silver	Silver	3 GHz	Crimp	Brass	50 Ohms	1	500	Brass
Amphenol Times Microwave Systems TC-500-NM-LP
Amphenol Times Microwave Systems TC-500-4310M-RA-LP
Amphenol Times Microwave Systems TC-500-716M-X
Amphenol Times Microwave Systems TC-500-NFC	Female Socket Jack	Solder	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	White Bronze	LMR-500	N Type	Gold	Silver	2.5 GHz	Clamp	Beryllium Copper	50 Ohms	1		Brass	1000 VDC
Amphenol Times Microwave Systems TC-500-NM-RA-LP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 34.06

General part information

Connector

Technical documentation and resources

No documents available
