KTB851EVD-ADJ-1-TR
ActiveKinetic Technologies
IC REG BUCK ADJ 600MA 6UTDFN
Deep-Dive with AI
Search across all available documentation for this part.
KTB851EVD-ADJ-1-TR
ActiveKinetic Technologies
IC REG BUCK ADJ 600MA 6UTDFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KTB851EVD-ADJ-1-TR |
|---|---|
| Current - Output | 600 mA |
| Frequency - Switching | 1.6 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

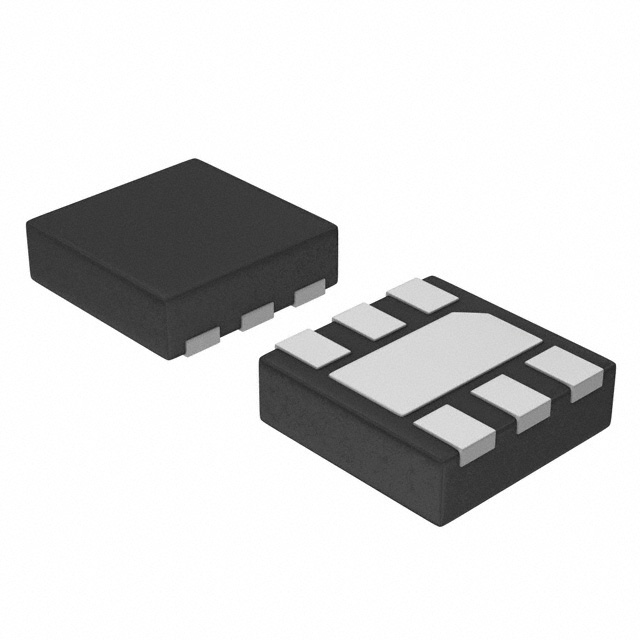

| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-UTDFN (1.6x1.6) |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 9000 | $ 0.22 | |
| 15000 | $ 0.21 | |||
| 30000 | $ 0.20 | |||
Description
General part information
KTB851 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 600mA 6-UFDFN Exposed Pad
Documents
Technical documentation and resources
No documents available
