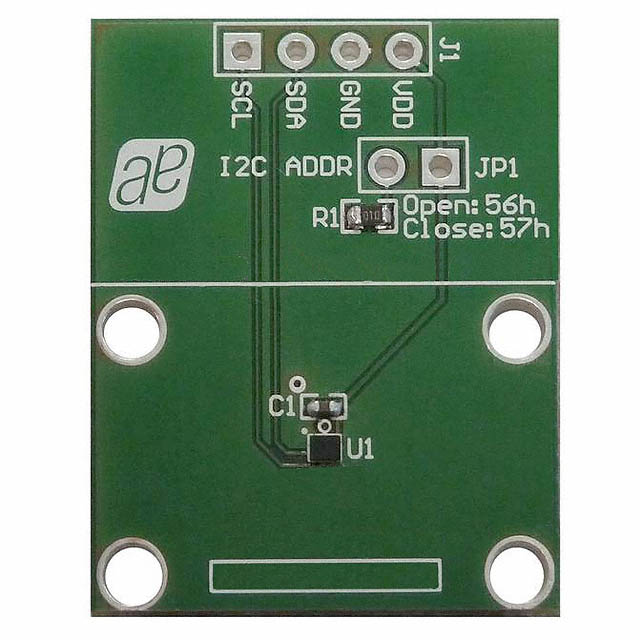

AS5510-WL_EK_AB

Active

ams-OSRAM USA INC.

ADAPTER BOARD FOR AS5510

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

ADAPTER BOARD FOR AS5510

Technical Specifications

Parameters and characteristics for this part

Part	Current - Supply (Max)	Axis	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Resolution	Sensing Range	Supplier Device Package	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Technology	Contents	Sensor Type	Utilized IC / Part	Interface
ams-OSRAM USA INC. AS5510-DWLM	3.5 mA	Single	-30 ░C	85 °C	I2C	10 b	50 mT	6-WLCSP (1.5x1.1)	Surface Mount	3.6 V	2.5 V	6-UFBGA WLCSP	Hall Effect
ams-OSRAM USA INC. AS5510-WL_EK_AB										3.6 V	2.5 V			Board(s)	Linear Position Magnetic	AS5510	I2C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.66

General part information

AS5510 - Magnetic, Linear Position Sensor Evaluation Board

Technical documentation and resources

No documents available
