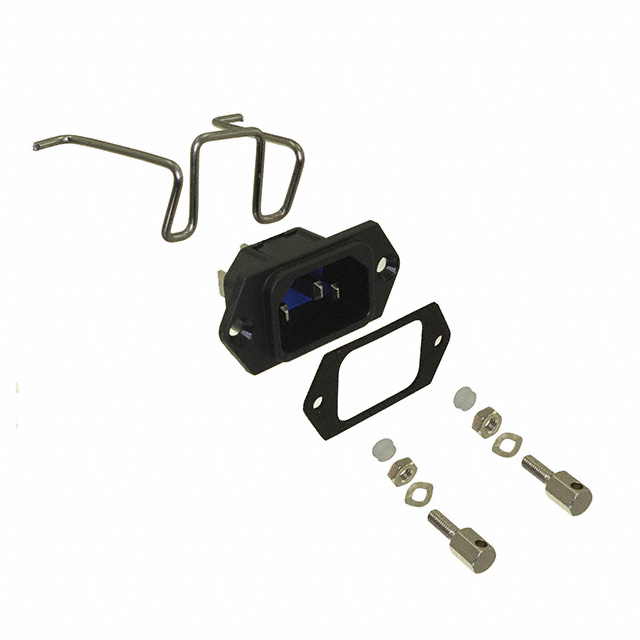

6100.3300.33

Active

SCHURTER Inc.

IEC POWER CONNECTOR, IEC C14 INLET, 15 A, 250 VAC, QUICK CONNECT, FLANGE MOUNT

Search across all available documentation for this part.

Active

SCHURTER Inc.

IEC POWER CONNECTOR, IEC C14 INLET, 15 A, 250 VAC, QUICK CONNECT, FLANGE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	6100.3300.33

Accomodates a Fuse	False
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Front or Rear Side Mount
Filter Type	Unfiltered - Commercial
Ingress Protection	IP54
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions	Variable Size
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

AC Power Entry Modules 6100 APPLIANCE INLET 10A 70 DEG C

Part	Mounting Type	Connector Style	Panel Cutout Dimensions	Approval Agency	Ingress Protection	Termination	Termination	Termination	Filter Type	Material Flammability Rating	Voltage Rating - Appliance Inlet	Features	Current Rating - Appliance Inlet	Connector Type	Accomodates a Fuse
SCHURTER Inc. 6100.3300.33	Flange Panel Mount	IEC 320-C14	Variable Size	CCC cULus ENEC	IP54	0.25 in	6.3 mm	Quick Connect	Unfiltered - Commercial	UL94 V-0	250 VAC	Front or Rear Side Mount	10 A	Receptacle Male Blades - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Power Entry Modules 6100 APPLIANCE INLET 10A 70 DEG C

Technical documentation and resources
