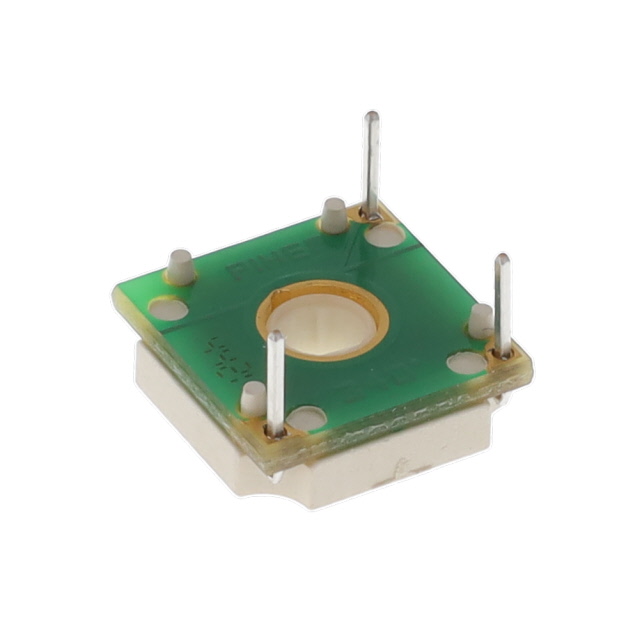

N15TV-103A3030
ActiveAmphenol Piher Sensing Systems
TRIMMER 10K OHM 0.15W PC PIN TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N15TV-103A3030 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 150 mW |
| Resistance | 10000 Ohms |
| Resistive Material | Carbon |
| Size / Dimension [x] | 0.591 in |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [y] | 15 mm |
| Size / Dimension [y] | 0.591 in |
| Temperature Coefficient | 300 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.60 | |
| 5 | $ 2.19 | |||
| 10 | $ 2.04 | |||
| 25 | $ 1.85 | |||
| 50 | $ 1.72 | |||
| 100 | $ 1.59 | |||
| 500 | $ 1.48 | |||
Description
General part information
N15TV-103 Series
10 kOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
