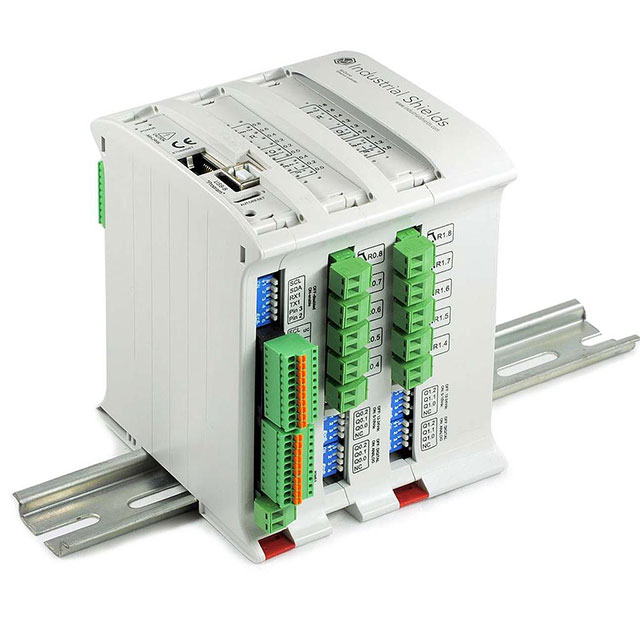

IS.MDUINO.38AR+

Active

Industrial Shields

PLC, M-DUINO, ETHERNET, 38AR I/O ANALOGUE/DIGITAL PLUS

Search across all available documentation for this part.

Active

Industrial Shields

PLC, M-DUINO, ETHERNET, 38AR I/O ANALOGUE/DIGITAL PLUS

Technical Specifications

Parameters and characteristics for this part

Specification	IS.MDUINO.38AR+

Communications	RS-232, USB, RS-485, Ethernet
Display Type	No Display
Expandable [Max]	127 Modules
Features	Power Supply, Manual, Cable
Memory Size	2 Gbit
Mounting Type	DIN Rail
Number of Inputs and Type [custom]	9
Number of Inputs and Type [custom]	10
Number of Outputs and Type [custom]	6
Number of Outputs and Type [custom]	8
Number of Outputs and Type [custom]	5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

Part	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Features	Operating Temperature [Max]	Display Type	Communications	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Memory Size	Expandable [Max]	Mounting Type	Number of Outputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Outputs and Type
Industrial Shields IS.MDUINO.38R+	16	6	Cable Manual Power Supply	60 °C	No Display	Ethernet RS-232 RS-485 USB	24 V	12 V	4	8	2 Gbit	127 Modules	DIN Rail
Industrial Shields IS.MDUINO.58+		8	Cable Manual Power Supply	60 °C	No Display	Ethernet RS-232 RS-485 USB	24 V	12 V			2 Gbit	127 Modules	DIN Rail	14	36	20	16
Industrial Shields IS.MDUINO.42+			Cable Manual Power Supply	60 °C	No Display	Ethernet RS-232 RS-485 USB	24 V	12 V	14	12	2 Gbit	127 Modules	DIN Rail					6 10
Industrial Shields IS.MDUINO.21+			Cable Manual Power Supply	60 °C	No Display	Ethernet RS-232 RS-485 USB	24 V	12 V	7	6	2 Gbit	127 Modules	DIN Rail					3 5
Industrial Shields IS.MDUINO.38AR+	8	6	Cable Manual Power Supply	60 °C	No Display	Ethernet RS-232 RS-485 USB	24 V	12 V	9	10	2 Gbit	127 Modules	DIN Rail	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 591.32
		10	$ 457.15
Newark	Each	1	$ 437.65

General part information

Programmable Logic Controller (PLC) DIN Rail 12 ~ 24VDC
