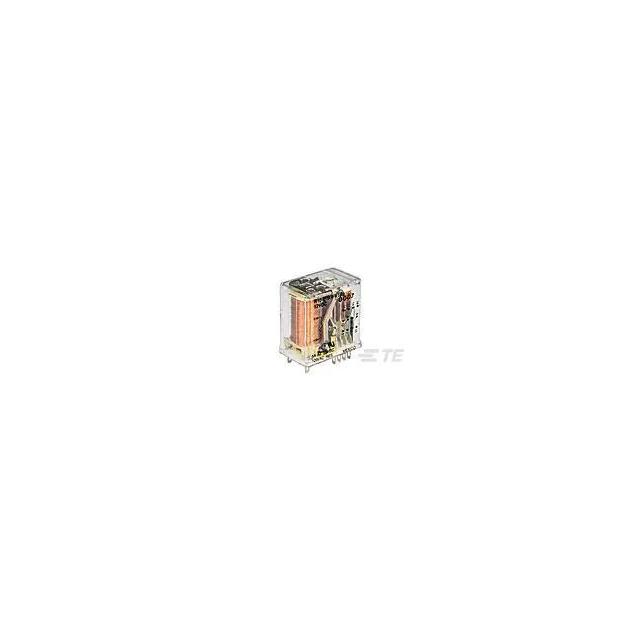

9-1393768-3
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 3A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9-1393768-3
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 3A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9-1393768-3 |
|---|---|
| Coil Current | 34.3 mA |
| Coil Resistance | 700 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 3 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 30 VDC, 120 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 2 | $ 63.92 | |
| 6 | $ 61.56 | |||
| 12 | $ 66.30 | |||
| 22 | $ 65.11 | |||
| 24 | $ 60.38 | |||
Description
General part information
1393768 Series
General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
