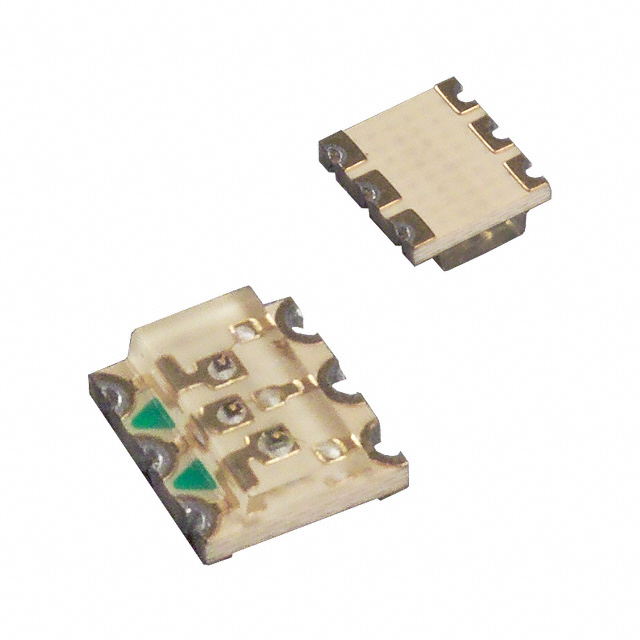

SML-LX3632SISUGSBC
ActiveLumex Opto/Components Inc.
LED RGB CLEAR 3632 SMD
Deep-Dive with AI
Search across all available documentation for this part.
SML-LX3632SISUGSBC
ActiveLumex Opto/Components Inc.
LED RGB CLEAR 3632 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-LX3632SISUGSBC |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Independent |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 1.1 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.9 mm |
| Lens Size [y] | 3.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 50 mcd |
| Millicandela Rating [custom] | 60 mcd |
| Millicandela Rating [custom] | 75 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 3.6 mm |
| Size / Dimension [y] | 3.2 mm |
| Supplier Device Package | 3632 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.5 V, 2.2 V, 2 V |
| Wavelength - Peak [custom] | 636 nm |
| Wavelength - Peak [custom] | 430 nm |
| Wavelength - Peak [custom] | 574 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.52 | |
| 10 | $ 1.68 | |||
| 100 | $ 1.29 | |||
| 500 | $ 1.17 | |||
| Digi-Reel® | 1 | $ 2.52 | ||
| 10 | $ 1.68 | |||
| 100 | $ 1.29 | |||
| 500 | $ 1.17 | |||
| Tape & Reel (TR) | 1000 | $ 1.00 | ||
| 2000 | $ 0.95 | |||
| 5000 | $ 0.93 | |||
| 10000 | $ 0.91 | |||
Description
General part information
SML-LX3632 Series
Red, Green, Blue (RGB) LED Indication - Discrete 2V Red, 2.2V Green, 3.5V Blue 6-SMD, No Lead
Documents
Technical documentation and resources
No documents available
