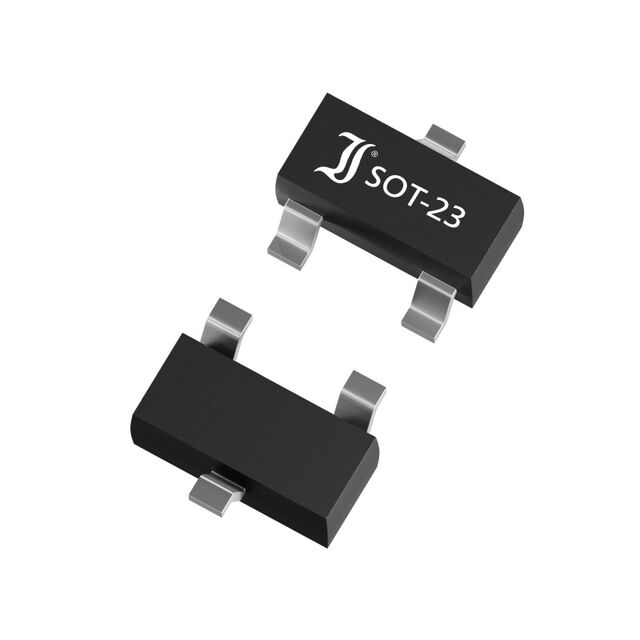

2N7002A

Active

Diotec Semiconductor

MOSFET SOT23 N 60V 2OHM 150C

Search across all available documentation for this part.

Active

Diotec Semiconductor

MOSFET SOT23 N 60V 2OHM 150C

Technical Specifications

Parameters and characteristics for this part

Specification	2N7002A

Current - Continuous Drain (Id) @ 25°C	280 mA
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On) [Max]	10 V
Drive Voltage (Max Rds On, Min Rds On) [Min]	5 V
FET Type	N-Channel
Input Capacitance (Ciss) (Max) @ Vds	50 pF
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Power Dissipation (Max) [Max]	350 mW
Rds On (Max) @ Id, Vgs	2 Ohm
Supplier Device Package	SOT-23-3 (TO-236)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	30 V
Vgs(th) (Max) @ Id	2.5 V

Part	Technology	Rds On (Max) @ Id, Vgs	Mounting Type	FET Type	Operating Temperature	Input Capacitance (Ciss) (Max) @ Vds	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max) [Max]	Package / Case	Vgs (Max)	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Drain to Source Voltage (Vdss)
Diotec Semiconductor 2N7002A	MOSFET (Metal Oxide)	2 Ohm	Surface Mount	N-Channel	150 °C	50 pF	2.5 V	280 mA	350 mW	SC-59 SOT-23-3 TO-236-3	30 V	SOT-23-3 (TO-236)	10 V	5 V	60 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 60 V 280mA (Ta) 350mW (Ta) Surface Mount SOT-23-3 (TO-236)
