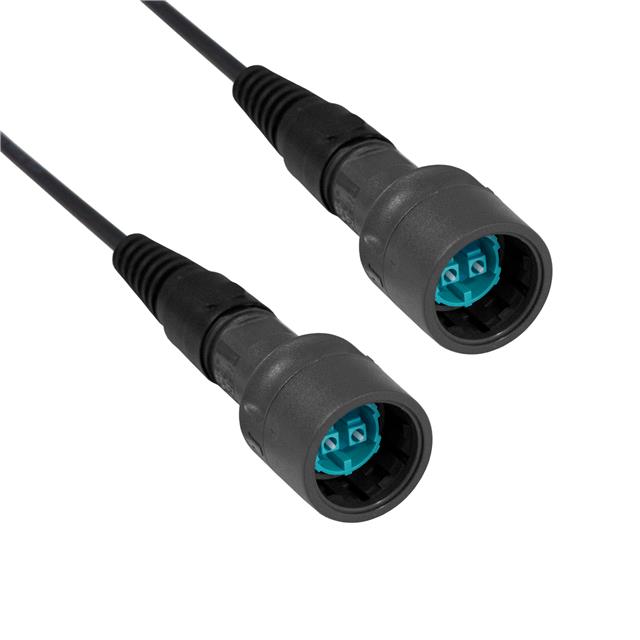

PXF6054AAK

Active

BULGIN LIMITED

FIBRE CABLE, LC DUPLEX-LC DUPLEX, MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PXF6054AAK

Active

BULGIN LIMITED

FIBRE CABLE, LC DUPLEX-LC DUPLEX, MM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXF6054AAK

1st Connector	LC Duplex
2nd Connector	LC Duplex
Bend Radius [radius]	10 mm
Cable Diameter [diameter]	2 mm
Cable Diameter [diameter]	0.08 in
Cable Type	Buffered Fiber
Color - Connectors	Aqua
Features	IP66, IP68, IP69K, Low Smoke
Fiber Type	50/125
Length - Overall	1476.4 ft
Length - Overall	450 m
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Ratings	LSZH
Type	Duplex, OM3, Multimode

PXF6054 Series

Part	Length - Overall	Length - Overall	Cable Type	Color - Cable	Bend Radius	1st Connector	2nd Connector	Color - Connectors	Fiber Type	Jacket (Insulation) Material	Type	Cable Diameter [diameter]	Cable Diameter [diameter]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Length - Overall [x]	Length - Overall [x]	Ratings	Bend Radius [radius]	Insertion Loss
BULGIN LIMITED PXF6054BAE	50 m	164 ft	Buffered Fiber	Orange	30 mm	LC Duplex	LC Duplex	Aqua	62.5/125	Poly-Vinyl Chloride (PVC)	Duplex Multimode OM1	2 mm	0.08 in	IP66 IP68 IP69K Low Smoke	70 °C	-25 °C
BULGIN LIMITED PXF6054CAD			Buffered Fiber	Yellow		LC Duplex	LC Duplex	Aqua			Duplex OS1 Singlemode	2 mm	0.08 in	IP66 IP68 IP69K Low Smoke	70 °C	-25 °C	82 ft	25 m	LSZH	10 mm	0.2 dB
BULGIN LIMITED PXF6054BAF	100 m	328.1 '	Buffered Fiber	Orange	30 mm	LC Duplex	LC Duplex	Aqua	62.5/125	Poly-Vinyl Chloride (PVC)	Duplex Multimode OM1	2 mm	0.08 in	IP66 IP68 IP69K Low Smoke	70 °C	-25 °C
BULGIN LIMITED PXF6054BAA	5 m	16.4 ft	Buffered Fiber	Orange	30 mm	LC Duplex	LC Duplex	Aqua	62.5/125	Poly-Vinyl Chloride (PVC)	Duplex Multimode OM1	2 mm	0.08 in	IP66 IP68 IP69K Low Smoke	70 °C	-25 °C
BULGIN LIMITED PXF6054CAG			Buffered Fiber	Yellow		LC Duplex	LC Duplex	Aqua			Duplex OS1 Singlemode	2 mm	0.08 in	IP66 IP68 IP69K Low Smoke	70 °C	-25 °C	492.1 '	150 m	LSZH	10 mm	0.2 dB
BULGIN LIMITED PXF6054CAC			Buffered Fiber	Yellow		LC Duplex	LC Duplex	Aqua			Duplex OS1 Singlemode	2 mm	0.08 in	IP66 IP68 IP69K Low Smoke	70 °C	-25 °C	49.2 '	15 m	LSZH	10 mm	0.2 dB
BULGIN LIMITED PXF6054BAJ			Buffered Fiber	Orange	30 mm	LC Duplex	LC Duplex	Aqua	62.5/125	Poly-Vinyl Chloride (PVC)	Duplex Multimode OM1	2 mm	0.08 in	IP66 IP68 IP69K Low Smoke	70 °C	-25 °C	984.3 ft	300 m
BULGIN LIMITED PXF6054AAH			Buffered Fiber			LC Duplex	LC Duplex	Aqua	50/125		Duplex Multimode OM3	2 mm	0.08 in	IP66 IP68 IP69K Low Smoke	70 °C	-25 °C	656.2 '	200 m	LSZH	10 mm
BULGIN LIMITED PXF6054BAD			Buffered Fiber	Orange	30 mm	LC Duplex	LC Duplex	Aqua	62.5/125	Poly-Vinyl Chloride (PVC)	Duplex Multimode OM1	2 mm	0.08 in	IP66 IP68 IP69K Low Smoke	70 °C	-25 °C	82 ft	25 m
BULGIN LIMITED PXF6054AAK	450 m	1476.4 ft	Buffered Fiber			LC Duplex	LC Duplex	Aqua	50/125		Duplex Multimode OM3	2 mm	0.08 in	IP66 IP68 IP69K Low Smoke	70 °C	-25 °C			LSZH	10 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 3977.52
Newark	Each	1	$ 4806.45
		10	$ 4523.72
		25	$ 4382.35
		50	$ 4099.62
		100	$ 3873.43

Description

General part information

PXF6054 Series

Cable Fiber Optic LC Duplex To LC Duplex 50/125 1476.4' (450.0m)

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
