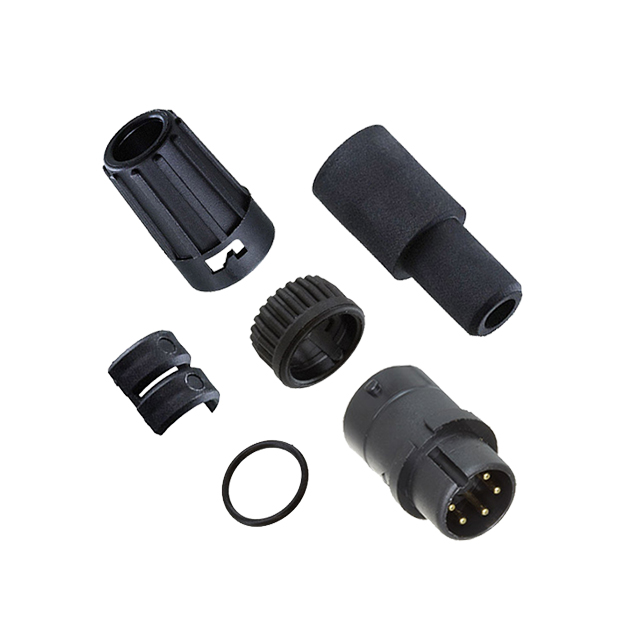

6282-5PG-513
ActiveConxall/Switchcraft
CONN PLUG MALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6282-5PG-513
ActiveConxall/Switchcraft
CONN PLUG MALE 5P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6282-5PG-513 |
|---|---|
| Applications | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [custom] | 0.13 in, 0.15 in |
| Cable Opening [custom] | 3.81 mm, 3.3 mm |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | Weathertight |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.82 | |
| 10 | $ 7.04 | |||
| 25 | $ 6.63 | |||
| 50 | $ 6.46 | |||
| 100 | $ 6.29 | |||
| 300 | $ 5.98 | |||
Description
General part information
6282-5PG Series
5 Position Circular Connector Plug, Male Pins Solder Cup
