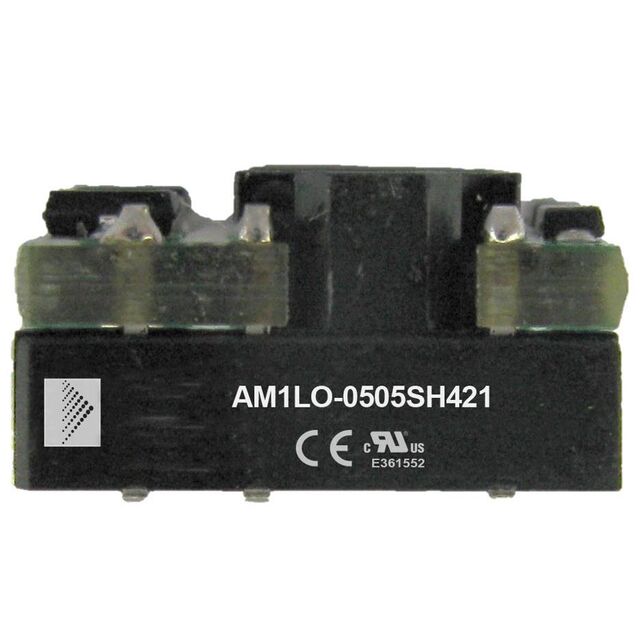

AM1LO-0505SH421TR

Active

aimtec

DC DC CONVERTER 5V 1W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 5V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Outputs	Approval Agency	Efficiency	Applications	Type	Voltage - Input (Min) [Min]	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Input (Max) [Max]
aimtec AM1LO-0505SH421TR	-40 °C	105 ░C	Surface Mount	1	CE cURus UL	76 %	ITE (Commercial)	Isolated Module	4.5 V	SMD	5 V	200 mA	4.2 kV	5.5 V
aimtec AM1LO-0503SH421	-40 °C	105 C	Surface Mount	1	CE cURus	76 %	ITE (Commercial)	Isolated Module	4.5 V	8-SMD Module 5 Leads	3.3 V	303 mA	4.2 kV	5.5 V
aimtec AM1LO-0505SH421	-40 °C	105 C	Surface Mount	1	CE cURus	76 %	ITE (Commercial)	Isolated Module	4.5 V	8-SMD Module 5 Leads	5 V	200 mA	4.2 kV	5.5 V
aimtec AM1LO-0303SH421TR	-40 °C	105 ░C	Surface Mount	1	CE cURus UL	73 %	ITE (Commercial)	Isolated Module	2.97 V	SMD	3.3 V	303 mA	4.2 kV	3.63 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
