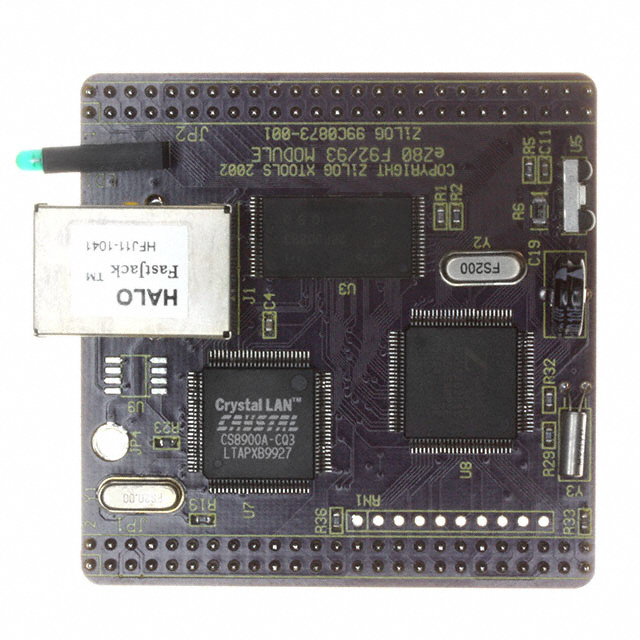

EZ80F920120MOD
ActiveZilog
IC MOD EZ80F92 20MHZ 8KB
Deep-Dive with AI
Search across all available documentation for this part.
EZ80F920120MOD
ActiveZilog
IC MOD EZ80F92 20MHZ 8KB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EZ80F920120MOD |
|---|---|
| Connector Type | Header 2x25 |
| Core Processor | eZ80F92 |
| Flash Size | 128 KB, 1 MB |
| Module/Board Type | MCU Core |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Size | 8 KB |
| RAM Size | 512 KB |
| Size / Dimension [x] | 63.5 mm |
| Size / Dimension [x] | 64 mm |
| Size / Dimension [y] | 2.5 in |
| Size / Dimension [y] | 64 mm |
| Speed | 20 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EZ80F920120 Series
eZ80® Acclaim!® Embedded Module eZ80F92 20MHz 8KB (Internal), 512KB (External) 128KB (Internal), 1MB (External)
Documents
Technical documentation and resources
