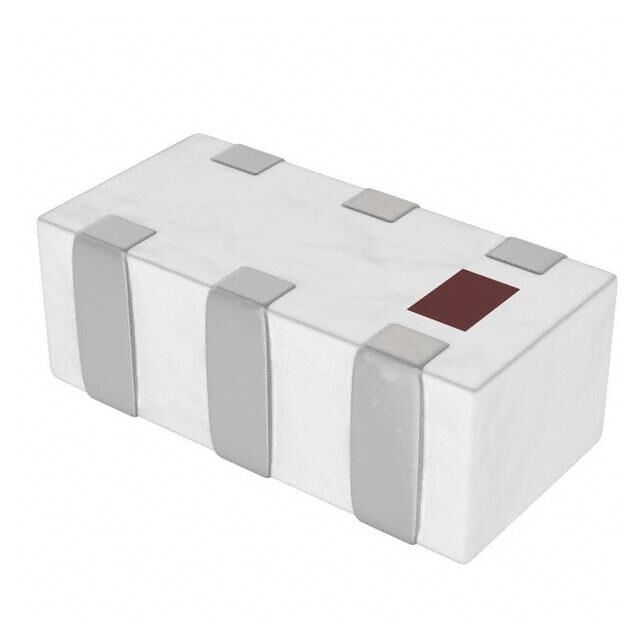

TCW4-262+
ActiveMINI-CIRCUITS
RF XFMR / SURF MT / ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TCW4-262+
ActiveMINI-CIRCUITS
RF XFMR / SURF MT / ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TCW4-262+ |
|---|---|
| Frequency Range [Max] | 2600 MHz |
| Frequency Range [Min] | 2.3 GHz |
| Impedance - Unbalanced/Balanced | 1:4 |
| Insertion Loss (Max) [Max] | 1.7 dB |
| Mounting Type | Surface Mount |
| Package / Case | 0603 |
| Package / Case | 1608 |
| Package / Case | 6 Leads |
| Phase Difference | 13 ° |
| Return Loss (Min) [Min] | 9.5 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.55 | |
| 10 | $ 4.33 | |||
| 20 | $ 4.13 | |||
| 50 | $ 3.30 | |||
| 100 | $ 2.75 | |||
| 200 | $ 2.33 | |||
| 500 | $ 1.92 | |||
| Digi-Reel® | 1 | $ 4.55 | ||
| 10 | $ 4.33 | |||
| 20 | $ 4.13 | |||
| 50 | $ 3.30 | |||
| 100 | $ 2.75 | |||
| 200 | $ 2.33 | |||
| 500 | $ 1.92 | |||
| Tape & Reel (TR) | 1000 | $ 1.57 | ||
| 2000 | $ 1.34 | |||
| 5000 | $ 1.18 | |||
Description
General part information
TCW4 Series
RF Balun 2.3GHz ~ 2.6GHz 1:4 0603 (1608 Metric), 6 PC Pad
