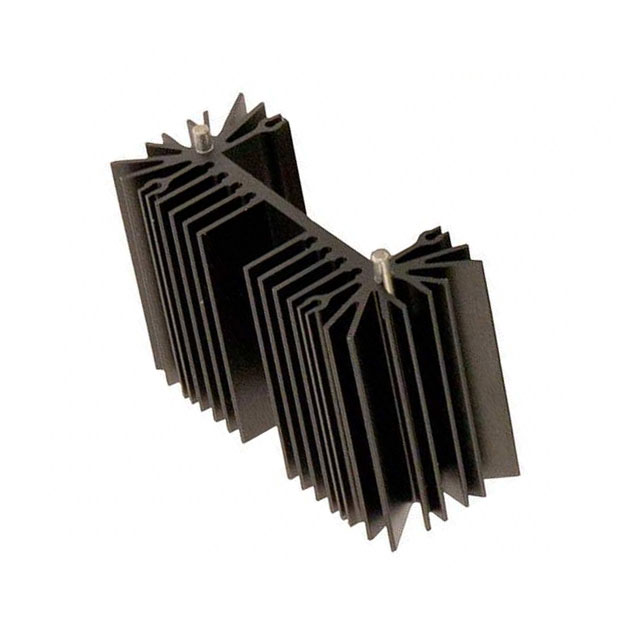

678-39-S

Active

Wakefield-Vette

HEATSINK TO-220/TO-247 SCREW

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK TO-220/TO-247 SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	678-39-S

Attachment Method	Board Mounts, Bolt On
Fin Height	38.61 mm
Fin Height	1.52 in
Length [x]	60 mm
Length [x]	2.362 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	0.6 °C/W
Type	Board Level, Vertical
Width	25 mm
Width [x]	0.984 in

Part	Material	Package Cooled	Thermal Resistance @ Forced Air Flow	Fin Height	Fin Height	Shape	Length [x]	Length [x]	Type	Width	Width [x]	Attachment Method	Material Finish
Wakefield-Vette 678-39-S	Aluminum	ASIC BGA CPU LGA	0.6 °C/W	38.61 mm	1.52 in	Rectangular Fins	60 mm	2.362 in	Board Level Vertical	25 mm	0.984 in	Board Mounts Bolt On	Black Anodized

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Board Level, Vertical
