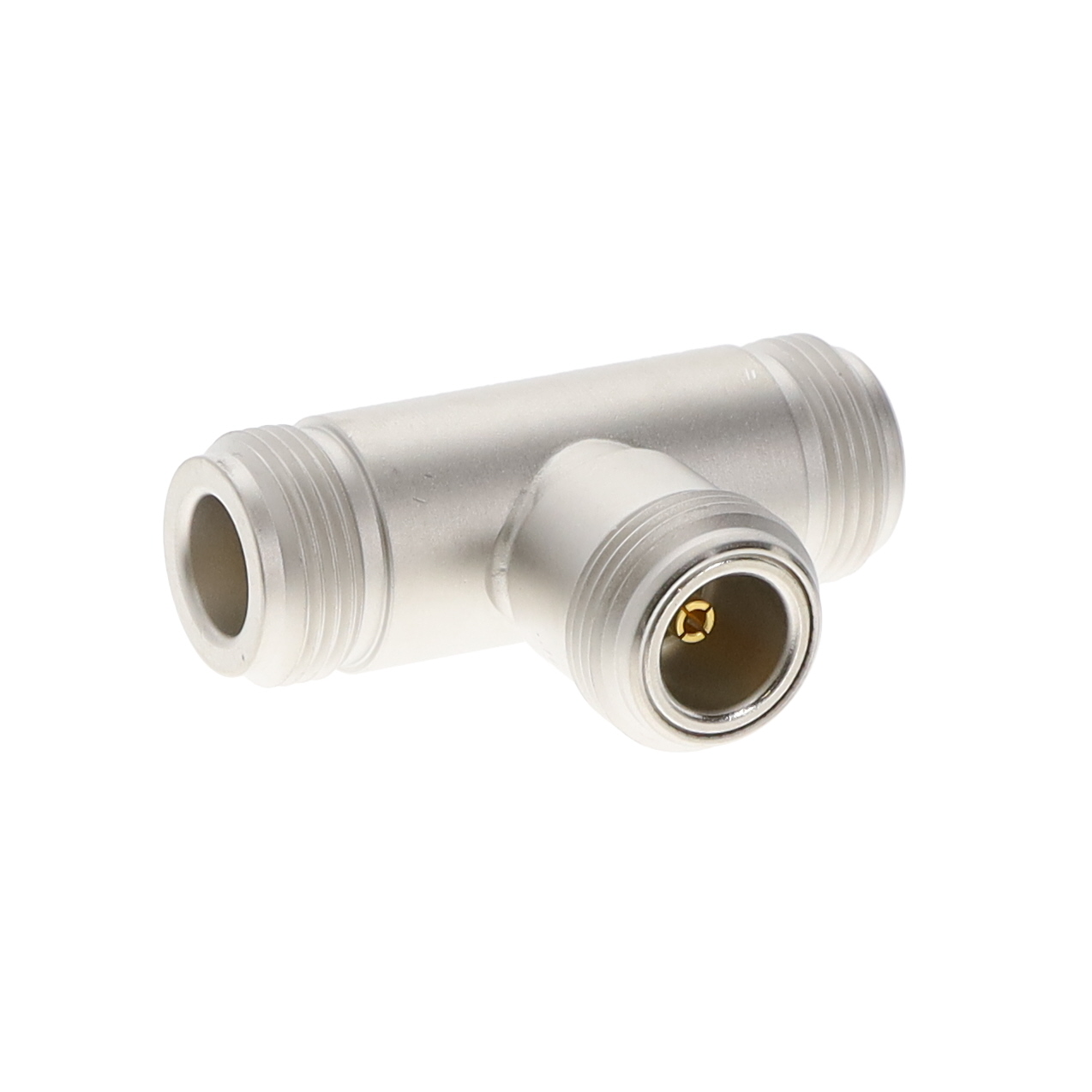

46_N-50-0-1/133_NE

Active

Huber+Suhner, Inc.

COAX ADAPT N TO N, DUAL

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

COAX ADAPT N TO N, DUAL

Technical Specifications

Parameters and characteristics for this part

Specification	46_N-50-0-1/133_NE

Adapter Series	N to N, Dual
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	N Jack, Female Socket (2)
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	T-Shape

Part	Mating Cycles	Convert From (Adapter End)	Adapter Series	Convert To (Adapter End)	Style	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Body Material	Body Finish	Center Gender	Frequency - Max [Max]	Mounting Type	Conversion Type	Adapter Type	Center Contact Plating	Dielectric Material
Huber+Suhner, Inc. 46_N-50-0-1/133_NE	500	Female Socket N Jack	N to N Dual	Female Socket (2) N Jack	T-Shape	Beryllium Copper	-65 ░C	165 °C	50 Ohms	Brass	White Bronze	Female to Female	11 GHz	Free Hanging (In-Line)	Same Series	Jack to Jack	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket (2) 50 Ohms
