C8PPS-1436G

Active

CW Industries

DIP CABLE - CDP14S/AE14G/CDP14S

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDP14S/AE14G/CDP14S

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Number of Positions	Cable Termination	Length	Length	Length	Connector Type	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Usage	Number of Rows	Length [x]	Length [x]	Color	Number of Positions
CW Industries C8PPS-1606G	0.1 in	2.54 mm	16	IDC	152.4 mm	6 "	0.5 '	DIP to DIP Reversed	0.05 "	1.27 mm	Unshielded	Tin	2.54 µm	100 µin	Board In Socket (0.3")	2
CW Industries C8PPS-1418M	0.1 in	2.54 mm		IDC				DIP to DIP Reversed	0.05 "	1.27 mm	Unshielded	Tin	2.54 µm	100 µin	Board In Socket (0.3")	2	457.2 mm	1.5 ft	Multiple Ribbon	14
CW Industries C8PPS-1436G	0.1 in	2.54 mm		IDC				DIP to DIP Reversed	0.05 "	1.27 mm	Unshielded	Tin	2.54 µm	100 µin	Board In Socket (0.3")	2	914.4 mm	3 ft		14
CW Industries C8PPS-1436M	0.1 in	2.54 mm		IDC				DIP to DIP Reversed	0.05 "	1.27 mm	Unshielded	Tin	2.54 µm	100 µin	Board In Socket (0.3")	2	914.4 mm	3 ft	Multiple Ribbon	14
CW Industries C8PPS-1406G	0.1 in	2.54 mm		IDC	152.4 mm	6 "	0.5 '	DIP to DIP Reversed	0.05 "	1.27 mm	Unshielded	Tin	2.54 µm	100 µin	Board In Socket (0.3")	2				14
CW Industries C8PPS-1406M	0.1 in	2.54 mm		IDC	152.4 mm	6 "	0.5 '	DIP to DIP Reversed	0.05 "	1.27 mm	Unshielded	Tin	2.54 µm	100 µin	Board In Socket (0.3")	2			Multiple Ribbon	14
CW Industries C8PPS-1606M	0.1 in	2.54 mm	16	IDC	152.4 mm	6 "	0.5 '	DIP to DIP Reversed	0.05 "	1.27 mm	Unshielded	Tin	2.54 µm	100 µin	Board In Socket (0.3")	2			Multiple Ribbon
CW Industries C8PPS-1618G	0.1 in	2.54 mm	16	IDC				DIP to DIP Reversed	0.05 "	1.27 mm	Unshielded	Tin	2.54 µm	100 µin	Board In Socket (0.3")	2	457.2 mm	1.5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

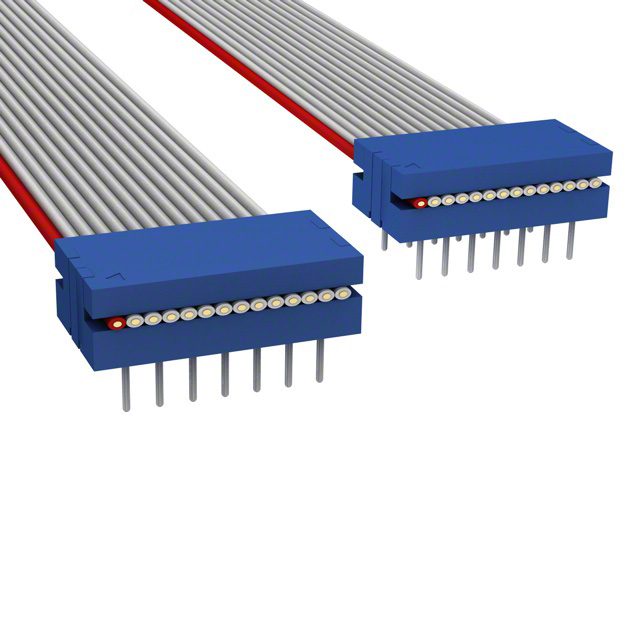

14 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)

Technical documentation and resources
