JDXFD2T001MSN

Active

Souriau-Sunbank by Eaton

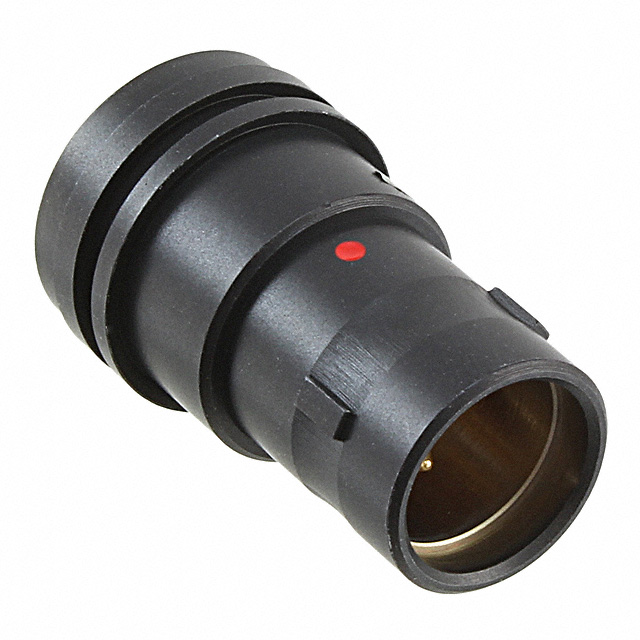

CONN PLUG MALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PLUG MALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JDXFD2T001MSN

Applications	Instrumentation, Medical, Military, Industrial
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Contact Material	Brass
Current Rating (Amps)	30 A, 7 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	8
Number of Positions [custom]	6
Number of Positions [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	T
Primary Material	Metal
Shell Finish	Black Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	2-001
Shielding	Shielded
Voltage Rating	700 VDC

Part	Connector Type	Shell Material	Fastening Type	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Applications	Primary Material	Ingress Protection	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Type	Shell Size - Insert	Color	Insert Material	Orientation	Current Rating (Amps)	Voltage Rating	Number of Positions [custom]
Souriau-Sunbank by Eaton JDXFD2T001MSN	Male Pins Plug	Brass	Push-Pull	Shielded	0.5 µm	19.7 µin	Black Chrome over Nickel	8	6	2	Industrial Instrumentation Medical Military	Metal	IP68 - Dust Tight Waterproof	Gold	125 °C	-40 °C	Brass	Free Hanging (In-Line)	2-001	Black	Polyetheretherketone (PEEK)	T	7 A 30 A	700 VDC
Souriau-Sunbank by Eaton JDXFD2T003MSN	Male Pins Plug	Brass	Push-Pull	Shielded	0.5 µm	19.7 µin	Black Chrome over Nickel			3	Industrial Instrumentation Medical Military	Metal	IP68 - Dust Tight Waterproof	Gold	125 °C	-40 °C	Brass	Free Hanging (In-Line)	2-003	Black	Polyetheretherketone (PEEK)	T	7 A 15 A	700 VDC	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 (6 + 2 Power) Position Circular Connector Plug, Male Pins Solder Cup
