SIT1533AI-H4-DCC-32.768S

Active

SiTime

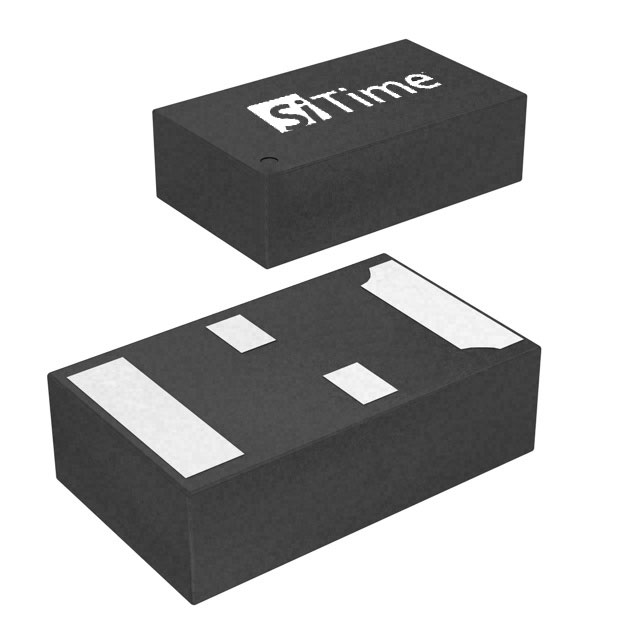

±100PPM LVCMOS 1.2V~3.63V 32.768KHZ SMD2012-4P PROGRAMMABLE OSCILLATORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturing Notes for SiTime Products Datasheet

SIT1533AI-H4-DCC-32.768S

Active

SiTime

±100PPM LVCMOS 1.2V~3.63V 32.768KHZ SMD2012-4P PROGRAMMABLE OSCILLATORS ROHS

Deep-Dive with AI

DocumentsManufacturing Notes for SiTime Products Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIT1533AI-H4-DCC-32.768S

Base Resonator	MEMS
Current - Supply (Max) [Max]	1.4 µA
Frequency	32.768 kHz
Frequency Stability	100 ppm
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVCMOS
Package / Case	4-SMD, No Lead
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.047 in
Size / Dimension [y]	1.2 mm
Type	XO (Standard)
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	1.2 V

SIT1533 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency Stability	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Type	Base Resonator	Current - Supply (Max) [Max]	Output	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
SiTime SIT1533AI-H4-D26-32.768E	2 mm	0.047 in	0.079 in	1.2 mm	100 ppm	Surface Mount	0.6 mm	0.024 in	4-SMD No Lead	85 °C	-40 °C	3.63 V	1.2 V	32.768 kHz	XO (Standard)	MEMS	1.4 µA
SiTime SIT1533AI-H4-AA2-32.768G	2 mm	0.047 in	0.079 in	1.2 mm	100 ppm	Surface Mount	0.6 mm	0.024 in	4-SMD No Lead	85 °C	-40 °C	3.63 V	1.5 V	32.768 kHz	XO (Standard)	MEMS	1.4 µA
SiTime SIT1533AI-H4-DCC-32.768G	2 mm	0.047 in	0.079 in	1.2 mm	100 ppm	Surface Mount	0.6 mm	0.024 in	4-SMD No Lead	85 °C	-40 °C	3.63 V	1.5 V	32.768 kHz	XO (Standard)	MEMS	1.4 µA	LVCMOS
SiTime SIT1533AI-H4-D13-32.768G	2 mm	0.047 in	0.079 in	1.2 mm	100 ppm	Surface Mount	0.6 mm	0.024 in	4-SMD No Lead	85 °C	-40 °C	3.63 V	1.5 V	32.768 kHz	XO (Standard)	MEMS	1.4 µA
SiTime SIT1533AC-H5-D14-32.768G	2 mm	0.047 in	0.079 in	1.2 mm	75 ppm	Surface Mount	0.6 mm	0.024 in	4-SMD No Lead			3.63 V	1.2 V	32.768 kHz	XO (Standard)	MEMS	1.3 µA		-10 °C	158 °F
SiTime SIT1533AC-H5-D14-32.768E	2 mm	0.047 in	0.079 in	1.2 mm	75 ppm	Surface Mount	0.6 mm	0.024 in	4-SMD No Lead			3.63 V	1.2 V	32.768 kHz	XO (Standard)	MEMS	1.3 µA		-10 °C	158 °F
SiTime SIT1533AC-H5-D93-32.768E	2 mm	0.047 in	0.079 in	1.2 mm	75 ppm	Surface Mount	0.6 mm	0.024 in	4-SMD No Lead			3.63 V	1.2 V	32.768 kHz	XO (Standard)	MEMS	1.3 µA		-10 °C	158 °F
SiTime SIT1533AI-H4-DCC-32.768S	2 mm	0.047 in	0.079 in	1.2 mm	100 ppm	Surface Mount	0.6 mm	0.024 in	4-SMD No Lead	85 °C	-40 °C	3.63 V	1.2 V	32.768 kHz	XO (Standard)	MEMS	1.4 µA	LVCMOS
SiTime SIT1533AC-H5-D14-32.768S	2 mm	0.047 in	0.079 in	1.2 mm	75 ppm	Surface Mount	0.6 mm	0.024 in	4-SMD No Lead			3.63 V	1.2 V	32.768 kHz	XO (Standard)	MEMS	1.3 µA		-10 °C	158 °F
SiTime SIT1533AI-H4-DCC-32.768D	2 mm	0.047 in	0.079 in	1.2 mm	100 ppm	Surface Mount	0.6 mm	0.024 in	4-SMD No Lead	85 °C	-40 °C	3.63 V	1.2 V	32.768 kHz	XO (Standard)	MEMS	1.4 µA	LVCMOS
