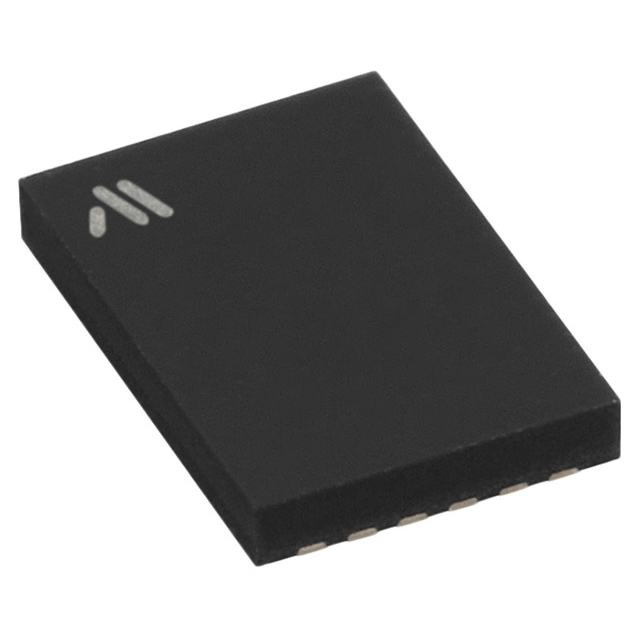

MM8118G01RFE

Active

Mitsumi Electric Company Ltd

FUEL GAUGE PLP-12A

Search across all available documentation for this part.

Active

Mitsumi Electric Company Ltd

FUEL GAUGE PLP-12A

Technical Specifications

Parameters and characteristics for this part

Specification	MM8118G01RFE

Battery Chemistry	Lithium Ion/Polymer
Fault Protection	Over Voltage, Over Current, Over Temperature
Function	Fuel Gauge
Interface	I2C
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-20 °C
Package / Case	12-UFDFN Exposed Pad
Supplier Device Package	PLP-12A

Part	Mounting Type	Package / Case	Supplier Device Package	Fault Protection	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Number of Cells	Battery Chemistry	Function
Mitsumi Electric Company Ltd MM8118W02LFE	Surface Mount	15-UFBGA WLCSP	15-WLCSP-A (2.61x1.46)	Over Current Over Temperature Over Voltage	I2C	-20 °C	85 C	1	Lithium Ion/Polymer	Fuel Gauge
Mitsumi Electric Company Ltd MM8118G01RFE	Surface Mount	12-UFDFN Exposed Pad	PLP-12A	Over Current Over Temperature Over Voltage	I2C	-20 °C	85 C	1	Lithium Ion/Polymer	Fuel Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 2.25

General part information

Battery Fuel Gauge IC Lithium Ion/Polymer PLP-12A
