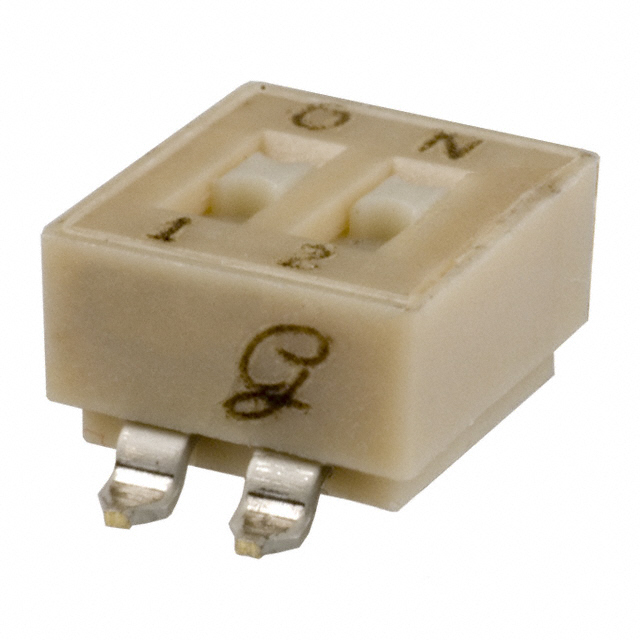

90HBW08PRT
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
90HBW08PRT
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 90HBW08PRT |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 2000 Steps |
| Features | Tape Seal |
| Length [x] | 0.87 in |
| Length [x] | 22.1 mm |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.02 | |
| 10 | $ 4.58 | |||
| 25 | $ 4.17 | |||
| 100 | $ 3.60 | |||
| 250 | $ 3.27 | |||
| Digi-Reel® | 1 | $ 5.02 | ||
| 10 | $ 4.58 | |||
| 25 | $ 4.17 | |||
| 100 | $ 3.60 | |||
| 250 | $ 3.27 | |||
| Tape & Reel (TR) | 750 | $ 3.03 | ||
| 1500 | $ 2.81 | |||
Description
General part information
90HBW08 Series
Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
