R143182000

Active

Radiall USA, Inc.

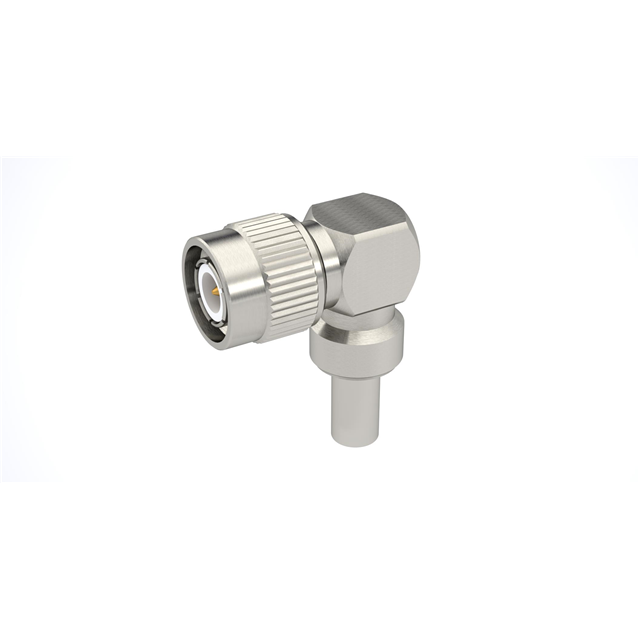

TNC M RA CR 5/50S C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC M RA CR 5/50S C100

Technical Specifications

Parameters and characteristics for this part

Specification	R143182000

Body Finish	Nickel
Body Material	Brass
Cable Group	141
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Frequency - Max [Max]	Housing Color	Dielectric Material	Cable Group	Cable Group	Center Contact Material	Voltage Rating	Connector Type	Center Contact Plating	Number of Ports	Mounting Type	Shield Termination	Connector Style	Contact Termination	Body Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Mating Cycles	Includes
Radiall USA, Inc. R143182161W	1.5 GHz	Silver	Polytetrafluoroethylene (PTFE)	141	RG-58	Brass	500 V	Male Pin Plug	Gold	1	Free Hanging (In-Line) Right Angle	Crimp	TNC	Crimp	Brass	Nickel	-35 °C	70 °C	50 Ohms
Radiall USA, Inc. R143183000	11 GHz	Silver	Polytetrafluoroethylene (PTFE)		223 400 RG-142	Brass	500 V	Male Pin Plug	Gold	1	Free Hanging (In-Line) Right Angle	Crimp	TNC	Crimp	Brass	Nickel	-65 ░C	165 °C	50 Ohms	500	1 Connector 1 Contact 1 Ferrule
Radiall USA, Inc. R143182000	11 GHz	Silver	Polytetrafluoroethylene (PTFE)	141	RG-58	Brass	500 V	Male Pin Plug	Gold	1	Free Hanging (In-Line) Right Angle	Crimp	TNC	Crimp	Brass	Nickel	-65 ░C	165 °C	50 Ohms	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
