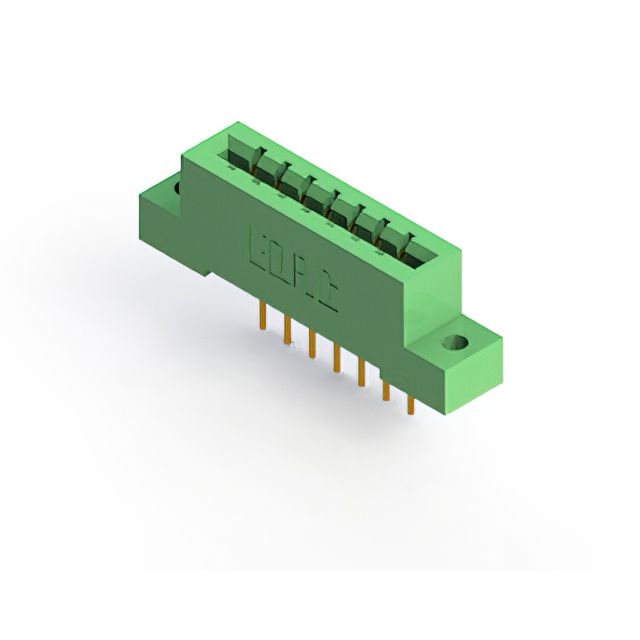

833-007-541-102
ActiveEDAC Inc.
CONN EDGE SGL FMALE 7POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-007-541-102
ActiveEDAC Inc.
CONN EDGE SGL FMALE 7POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-007-541-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
833-007 Series
| Part | Gender | Number of Positions/Bay/Row [custom] | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Material | Card Type | Contact Finish | Number of Rows | Color | Number of Positions | Pitch [x] | Pitch [x] | Termination | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 7 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | Non Specified - Single Edge | Gold | 1 | Green | 7 | 0.156 in | 3.96 mm | Solder | 1 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Female | 7 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | Non Specified - Single Edge | Gold | 1 | Green | 7 | 0.156 in | 3.96 mm | Wire Wrap | 1 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | Female | 7 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | Non Specified - Single Edge | Gold | 1 | Green | 7 | 0.156 in | 3.96 mm | Solder | 1 | 4-40 Threaded Insert Top Mount Opening | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Female | 7 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | Non Specified - Single Edge | Gold | 1 | Green | 7 | 0.156 in | 3.96 mm | Wire Wrap | 1 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | Female | 7 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | Non Specified - Single Edge | Gold | 1 | Green | 7 | 0.156 in | 3.96 mm | Solder Eyelet(s) | 1 | Side Mount Opening Unthreaded | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | ||
EDAC Inc. | Female | 7 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | Non Specified - Single Edge | Gold | 1 | Green | 7 | 0.156 in | 3.96 mm | Wire Wrap | 1 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Female | 7 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Through Hole Right Angle | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | Non Specified - Single Edge | Gold | 1 | Green | 7 | 0.156 in | 3.96 mm | Solder | 1 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | |||
EDAC Inc. | Female | 7 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Through Hole Right Angle | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | Non Specified - Single Edge | Gold | 1 | Green | 7 | 0.156 in | 3.96 mm | Solder | 1 | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Female | 7 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | Non Specified - Single Edge | Gold | 1 | Green | 7 | 0.156 in | 3.96 mm | Solder | 1 | Flush Mount M3 Threaded Insert Top Opening | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Female | 7 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | Non Specified - Single Edge | Gold | 1 | Green | 7 | 0.156 in | 3.96 mm | Solder | 1 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
833-007 Series
7 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
