BBD-110-G-G

Active

Samtec Inc.

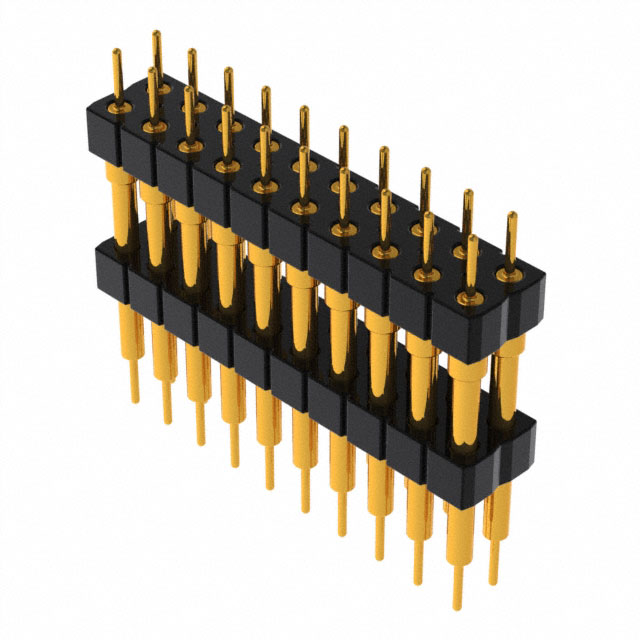

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BBD-110-G-G

Active

Samtec Inc.

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-110-G-G

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.585 in
Insulation Height	14.86 mm
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.835 in
Overall Contact Length	21.21 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

BBD-110 Series

Part	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Type	Mounting Type	Insulation Color	Termination	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Fastening Type	Number of Positions Loaded	Number of Positions	Contact Shape	Contact Finish - Post	Insulation Height	Insulation Height	Overall Contact Length
Samtec Inc. BBD-110-G-A	3.18 mm	0.125 in	0.1 in	2.54 mm	Header	1.27 µm	50 µin	Unshrouded	0.125 in	3.18 mm	Male Pin	Through Hole	Black	Solder	5.35 mm	0.211 in	2.54 mm	0.1 in	Gold	11.68 mm	0.46 "	2	0.51 µm	20 µin	-55 °C	125 °C	Polyester Glass Filled	Push-Pull	All	20	Circular	Nickel
Samtec Inc. BBD-110-T-A	3.18 mm	0.125 in	0.1 in	2.54 mm	Header	1.27 µm	50 µin	Unshrouded	0.125 in	3.18 mm	Male Pin	Through Hole	Black	Solder	5.35 mm	0.211 in	2.54 mm	0.1 in		11.68 mm	0.46 "	2			-55 °C	125 °C	Polyester Glass Filled	Push-Pull	All	20	Circular	Nickel
Samtec Inc. BBD-110-G-G	3.18 mm	0.125 in	0.1 in	2.54 mm	Header	1.27 µm	50 µin	Unshrouded	0.125 in	3.18 mm	Male Pin	Through Hole	Black	Solder			2.54 mm	0.1 in	Gold	21.21 mm	0.835 in	2	0.51 µm	20 µin	-55 °C	125 °C	Polyester Glass Filled	Push-Pull	All	20	Circular	Nickel	0.585 in	14.86 mm
Samtec Inc. BBD-110-G-D	3.18 mm	0.125 in	0.1 in	2.54 mm	Header	1.27 µm	50 µin	Unshrouded	0.125 in	3.18 mm	Male Pin	Through Hole	Black	Solder			2.54 mm	0.1 in	Gold			2	0.51 µm	20 µin	-55 °C	125 °C	Polyester Glass Filled	Push-Pull	All	20	Circular	Nickel	0.835 "	21.21 mm
Samtec Inc. BBD-110-T-B	3.18 mm	0.125 in	0.1 in	2.54 mm	Header	1.27 µm	50 µin	Unshrouded	0.125 in	3.18 mm	Male Pin	Through Hole	Black	Solder			2.54 mm	0.1 in		0.585 in		2			-55 °C	125 °C	Polyester Glass Filled	Push-Pull	All	20	Circular	Nickel	0.335 "	8.51 mm	14.86 mm
Samtec Inc. BBD-110-T-C	3.18 mm	0.125 in	0.1 in	2.54 mm	Header	1.27 µm	50 µin	Unshrouded	0.125 in	3.18 mm	Male Pin	Through Hole	Black	Solder			2.54 mm	0.1 in		21.21 mm	0.835 in	2			-55 °C	125 °C	Polyester Glass Filled	Push-Pull	All	20	Circular	Nickel	0.585 in	14.86 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	22	$ 16.82

Description

General part information

BBD-110 Series

Connector Header Through Hole 20 position 0.100" (2.54mm)

Documents

Technical documentation and resources
