DR24D06

Active

Sensata-Crydom

SOLID STATE RELAY, 6 A, 280 VAC, DIN RAIL, SCREW, ZERO CROSSING

Search across all available documentation for this part.

Active

Sensata-Crydom

SOLID STATE RELAY, 6 A, 280 VAC, DIN RAIL, SCREW, ZERO CROSSING

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Approval Agency	Load Current	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Package / Case	Termination Style
Sensata-Crydom DR24D06X	DIN Rail	24 V	280 V	CE cULus	6 A	32 V	4 V	-20 C	40 °C	AC Zero Cross	Module	Screw Terminal
Sensata-Crydom DR24D06XR	DIN Rail	24 V	280 V	CE cULus	6 A	32 V	4 V	-20 C	40 °C	AC	Module	Screw Terminal
Sensata-Crydom DR24D06	DIN Rail	24 V	280 V	CE cULus	6 A	32 V	4 V	-20 C	40 °C	AC Zero Cross	Module	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

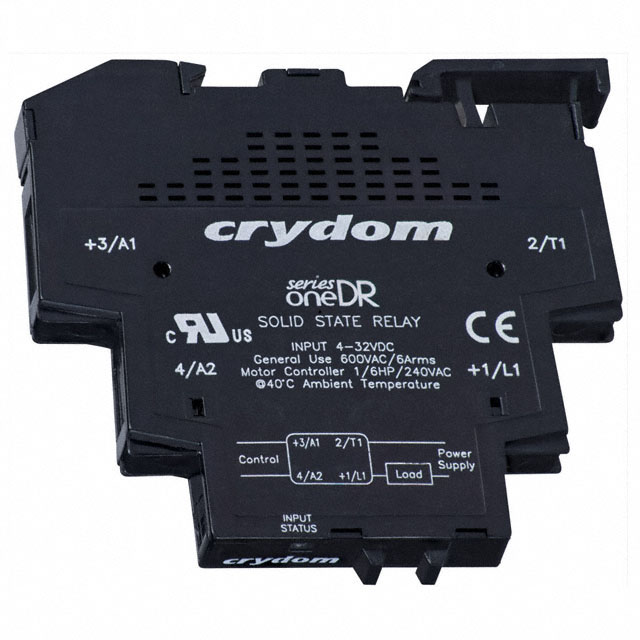

The DR24D06 is a 1-phase DIN rail-mount AC output Solid State Relay with LED input status indicator.
