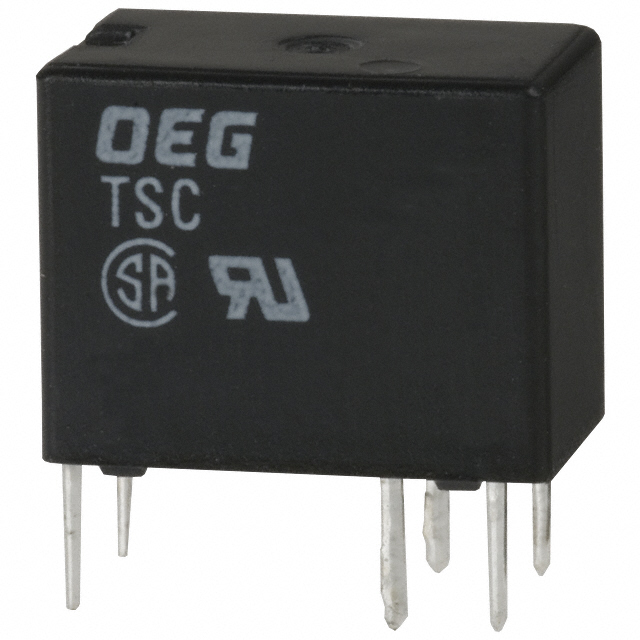

TSC-112L3H,000
ActiveTE Connectivity Potter & Brumfield Relays
RELAY TELECOM SPDT 1A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSC-112L3H,000
ActiveTE Connectivity Potter & Brumfield Relays
RELAY TELECOM SPDT 1A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSC-112L3H,000 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Resistance | 960 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 1 A |
| Load - Max Switching | 30 W, 120 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Relay Type | Telecom |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 30 VDC, 120 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.65 | |
| 10 | $ 5.29 | |||
| 25 | $ 4.71 | |||
| 50 | $ 4.47 | |||
| 100 | $ 4.24 | |||
| 250 | $ 3.77 | |||
| 500 | $ 3.53 | |||
| 1000 | $ 3.29 | |||
Description
General part information
TSC-112 Series
Telecom Relay SPDT (1 Form C) Through Hole
