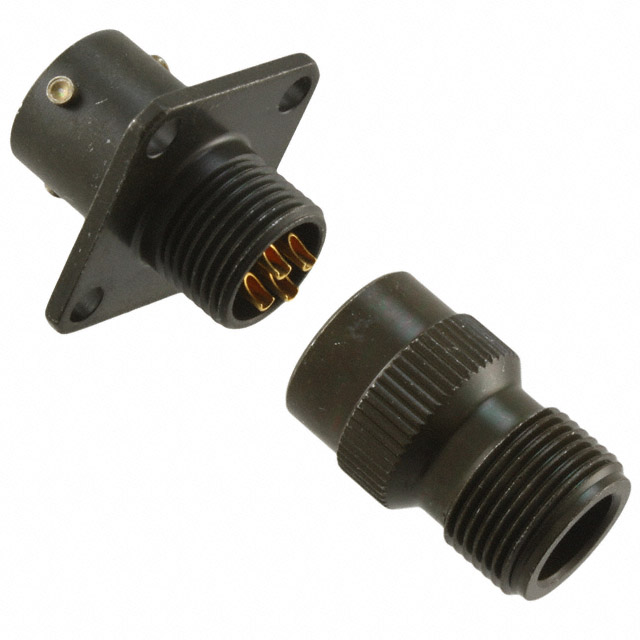

PT00A-8-4S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10-101949-010

PT00A-8-4S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet 10-101949-010

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT00A-8-4S

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Backshell
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	8-4
Shielding	Unshielded

PT00A Series

Part	Primary Material	Orientation	Contact Finish - Mating	Color	Applications	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Material	Shell Size - Insert	Features	Number of Positions	Shielding	Mounting Feature	Fastening Type	Connector Type	Shell Finish	Qualification	Insert Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Cable Opening [custom]	Cable Opening [custom]	Voltage Rating
Amphenol Industrial Operations PT00A-12-8PX	Metal	X	Gold	Olive Drab	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	-55 °C	125 °C	Copper Alloy	Aluminum	12-8	Backshell	8	Unshielded	Flange	Bayonet Lock	Male Pins Receptacle	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Neoprene
Amphenol Industrial Operations PT00A-14-5P	Metal	N	Gold	Olive Drab	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	-55 °C	125 °C	Copper Alloy	Aluminum	14-5	Backshell		Unshielded	Flange	Bayonet Lock	Male Pins Receptacle	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Neoprene
Amphenol Industrial Operations PT00A12-98P	Metal	N	Gold	Olive Drab	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Aluminum Olive Drab Cadmium	-55 °C	125 °C	Copper Alloy	Aluminum		Backshell	10	Unshielded	Flange	Bayonet Lock	Male Pins Receptacle	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Neoprene	12	98
Amphenol Industrial Operations PT00A-8-4P	Metal	N	Gold	Olive Drab	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	-55 °C	125 °C	Copper Alloy	Aluminum	8-4	Backshell	4	Unshielded	Flange	Bayonet Lock	Male Pins Receptacle	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Neoprene
Amphenol Industrial Operations PT00A-14-12S	Metal	N	Gold	Olive Drab	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	-55 °C	125 °C	Copper Alloy	Aluminum	14-12	Backshell	12	Unshielded	Flange	Bayonet Lock	Receptacle Female Sockets	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Neoprene
Amphenol Industrial Operations PT00A-12-4PW	Metal	W	Gold	Olive Drab	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	-55 °C	125 °C	Copper Alloy	Aluminum	12-4	Backshell	4	Unshielded	Flange	Bayonet Lock	Male Pins Receptacle	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Neoprene
Amphenol Industrial Operations PT00A-10-6P(025)	Metal	N	Gold	Black	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Black Zinc Cobalt	-55 °C	125 °C	Copper Alloy	Aluminum	10-6	Backshell	6	Unshielded	Flange	Bayonet Lock	Male Pins Receptacle	Black Zinc Cobalt	MIL-DTL-26482 Series I	Neoprene
Amphenol Industrial Operations PT00A-8-4S	Metal	N	Gold	Olive Drab	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	-55 °C	125 °C	Copper Alloy	Aluminum	8-4	Backshell	4	Unshielded	Flange	Bayonet Lock	Receptacle Female Sockets	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Neoprene
Amphenol Industrial Operations PT00A-14-19S	Metal	N	Gold	Olive Drab	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	-55 °C	125 °C	Copper Alloy	Aluminum		Backshell	19	Unshielded	Flange	Bayonet Lock	Receptacle Female Sockets	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Neoprene			19	14
Amphenol Industrial Operations PT00A8-3P-SR	Metal	N	Gold	Olive Drab	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Aluminum Olive Drab Cadmium	-55 °C	125 °C	Copper Alloy	Aluminum	8-3	Backshell Cable Clamp Strain Relief		Unshielded	Flange	Bayonet Lock	Male Pins Receptacle	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Neoprene					3.18 mm	0.125 in	600 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.73
		10	$ 31.28
		25	$ 29.93
		50	$ 28.97
		100	$ 28.00
		250	$ 26.46

Description

General part information

PT00A Series

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
