AD-NPHDBNCP-1

Active

Amphenol RF

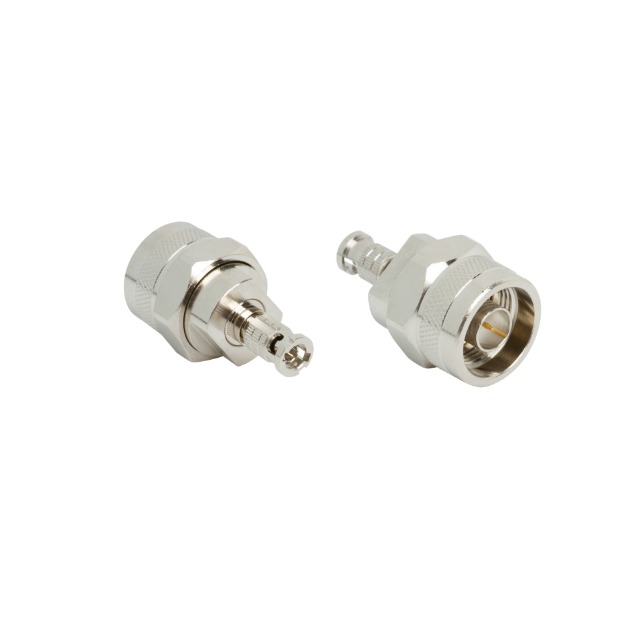

CONN TYPE N-BNC ADAPTER 0HZ TO 12GHZ 75OHM ST PL/PL GOLD SINGLE

Search across all available documentation for this part.

Active

Amphenol RF

CONN TYPE N-BNC ADAPTER 0HZ TO 12GHZ 75OHM ST PL/PL GOLD SINGLE

Technical Specifications

Parameters and characteristics for this part

Specification	AD-NPHDBNCP-1

Adapter Series	N, BNC, HD
Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	BNC HD Plug, Male Pin
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	12 GHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Fastening Type	Dielectric Material	Adapter Type	Conversion Type	Impedance	Adapter Series	Style	Center Gender	Mounting Type	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Center Contact Plating	Convert From (Adapter End)	Body Finish	Convert To (Adapter End)	Center Contact Material	Body Material
Amphenol RF AD-NPHDBNCP-1	Bayonet Lock Threaded	Polytetrafluoroethylene (PTFE)	Plug to Plug	Between Series	75 Ohms	BNC HD N	Straight	Male to Male	Free Hanging (In-Line)	12 GHz	85 °C	-40 °C	500	Gold	BNC HD Plug Male Pin	Nickel	Male Pin N Plug	Phosphor Bronze	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector BNC HD Plug, Male Pin To N Plug, Male Pin 75 Ohms
