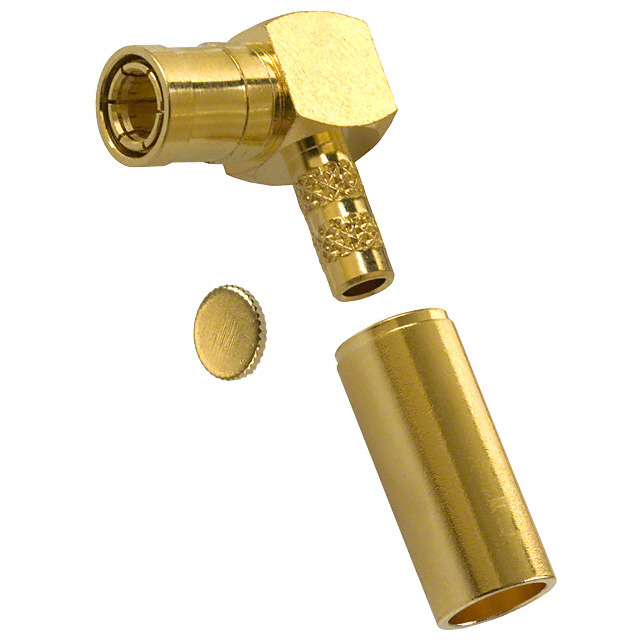

142221-75

Active

Amphenol RF

CONN MINI SMB PLUG R/A 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN MINI SMB PLUG R/A 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	142221-75

Body Finish	Gold
Body Material	Brass
Cable Group	AT&T 735A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Impedance	75 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Number of Ports	Center Contact Material	Body Material	Insertion Loss	Cable Group	Connector Type	Center Contact Plating	Contact Termination	Shield Termination	Dielectric Material	Housing Color	Mounting Type	Impedance	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Body Finish	Mating Cycles
Amphenol RF 142221-75	1	Beryllium Copper	Brass	0.6 dB	AT&T 735A	Female Socket Plug	Gold	Solder	Crimp	Polytetrafluoroethylene (PTFE)	Gold	Free Hanging (In-Line) Right Angle	75 Ohms	1 Connector 1 End Cap 1 Ferrule	-65 ░C	165 °C	Snap-On	Gold	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.49

General part information

SMB, Mini Connector Plug, Female Socket 75 Ohms Free Hanging (In-Line), Right Angle Solder
