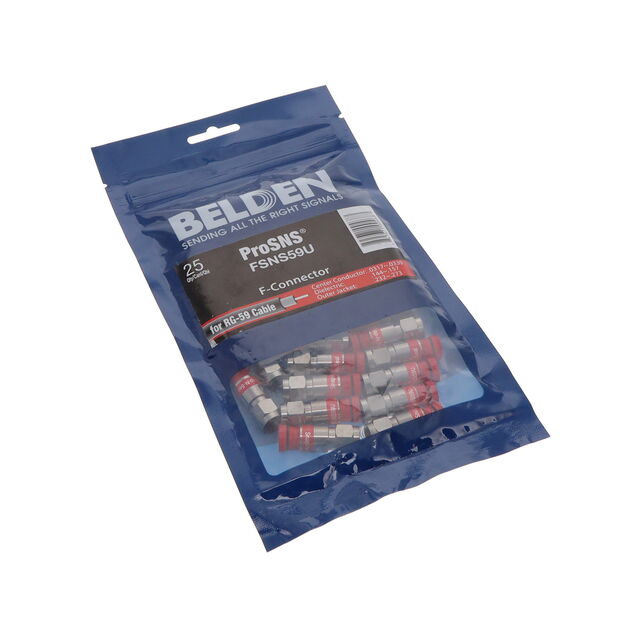

FSNS59U-25
ActiveBelden Inc.
SNS F-TYPE RG59 UNIVERSAL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
FSNS59U-25
ActiveBelden Inc.
SNS F-TYPE RG59 UNIVERSAL ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FSNS59U-25 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | F Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Compression |
| Frequency - Max [Max] | 1 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Insertion Loss | 0.2 dB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Compression |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FSNS59 Series
F Type Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Compression
