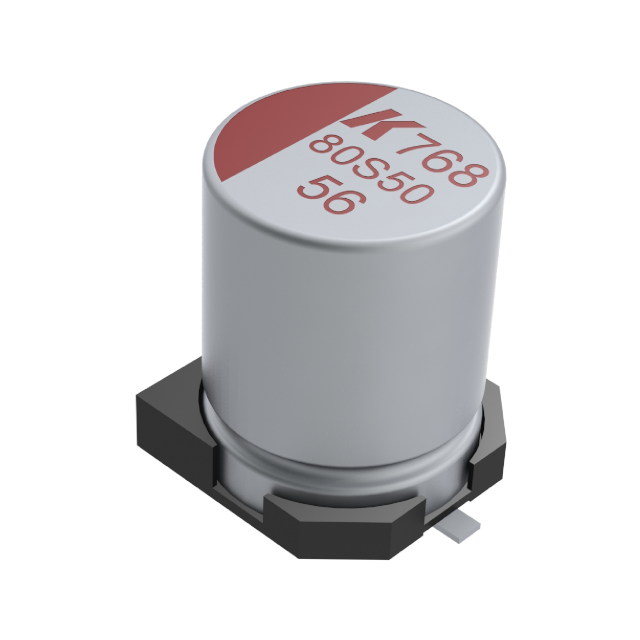

A768KS107M1HLAE030

Active

KEMET

CAP ALUM POLY 100UF 20% 50V SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA768KS107M1HLAE030 Spec Datasheet +1

A768KS107M1HLAE030

Active

KEMET

CAP ALUM POLY 100UF 20% 50V SMD

Deep-Dive with AI

DocumentsA768KS107M1HLAE030 Spec Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A768KS107M1HLAE030

Applications	General Purpose
Capacitance	100 µF
ESR (Equivalent Series Resistance)	30 mOhms
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ Low Frequency	95 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Surface Mount Land Size [x]	0.327 "
Surface Mount Land Size [x]	8.3 mm
Surface Mount Land Size [y]	8.3 mm
Surface Mount Land Size [y]	0.327 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	50 VDC

A768KS Series

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Package / Case	Mounting Type	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Lifetime @ Temp.	Capacitance	Ripple Current @ High Frequency	Applications	Ripple Current @ Low Frequency	Tolerance	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Ratings
KEMET A768KS477M1CLAE017	0.492 in	12.5 mm	17 mOhm	Radial Can - SMD	Surface Mount	16 V	-55 °C	125 °C	0.315 "	8 mm	Polymer	2000 Hrs	470 µF	2.5 A	General Purpose	125 mA	20 %	0.327 "	8.3 mm	0.327 in	8.3 mm
KEMET A768KS397M1DLAE017	0.492 in	12.5 mm	17 mOhm	Radial Can - SMD	Surface Mount	20 V	-55 °C	125 °C	0.315 "	8 mm	Polymer	2000 Hrs	390 µF	2.4 A	General Purpose	120 mA	20 %	0.327 "	8.3 mm	0.327 in	8.3 mm
KEMET A768KS157M1GLAS025	0.492 in	12.5 mm	25 mOhm	Radial Can - SMD	Surface Mount	40 V	-55 °C	125 °C	0.315 "	8 mm	Polymer	2000 Hrs	150 µF	1.95 A	Automotive	97.5 mA	20 %	0.327 "	8.3 mm	0.327 in	8.3 mm	AEC-Q200
KEMET A768KS826M1HLAS020	0.492 in	12.5 mm	20 mOhms	Radial Can - SMD	Surface Mount	50 VDC	-55 °C	125 °C	0.315 "	8 mm	Polymer	2000 Hrs	82 µF		Automotive	95 mA	20 %	0.327 "	8.3 mm	0.327 in	8.3 mm	AEC-Q200
KEMET A768KS396M1KLAE038	0.492 in	12.5 mm	38 mOhm	Radial Can - SMD	Surface Mount	80 V	-55 °C	125 °C	0.315 "	8 mm	Polymer	2000 Hrs	39 µF	1.6 A	General Purpose	80 mA	20 %	0.327 "	8.3 mm	0.327 in	8.3 mm
KEMET A768KS567M1CLAE017	0.492 in	12.5 mm	17 mOhm	Radial Can - SMD	Surface Mount	16 V	-55 °C	125 °C	0.315 "	8 mm	Polymer	2000 Hrs	560 µF	2.5 A	General Purpose	125 mA	20 %	0.327 "	8.3 mm	0.327 in	8.3 mm
KEMET A768KS107M1HLAE030	0.492 in	12.5 mm	30 mOhms	Radial Can - SMD	Surface Mount	50 VDC	-55 °C	125 °C	0.315 "	8 mm	Polymer	2000 Hrs	100 µF		General Purpose	95 mA	20 %	0.327 "	8.3 mm	0.327 in	8.3 mm
KEMET A768KS476M1JLAE031	0.492 in	12.5 mm	31 mOhm	Radial Can - SMD	Surface Mount	63 V	-55 °C	125 °C	0.315 "	8 mm	Polymer	2000 Hrs	47 µF	1.8 A	General Purpose	90 mA	20 %	0.327 "	8.3 mm	0.327 in	8.3 mm
KEMET A768KS337M1ELAE019	0.492 in	12.5 mm	19 mOhm	Radial Can - SMD	Surface Mount	25 VDC	-55 °C	125 °C	0.315 "	8 mm	Polymer	2000 Hrs	330 µF	2.325 A	General Purpose	116.25 mA	20 %	0.327 "	8.3 mm	0.327 in	8.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.08
		10	$ 0.69
		50	$ 0.53
		100	$ 0.47
	Digi-Reel®	1	$ 1.08
		10	$ 0.69
		50	$ 0.53
		100	$ 0.47
	Tape & Reel (TR)	400	$ 0.39
		800	$ 0.36
		1200	$ 0.35
		2000	$ 0.33
		2800	$ 0.32
		4000	$ 0.31
		10000	$ 0.29
		20000	$ 0.28

Description

General part information

A768KS Series

100 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 2000 Hrs @ 125°C

Documents

Technical documentation and resources

A768KS107M1HLAE030 Spec

Datasheet

KEM_A4088_A768.pdf

Datasheet
