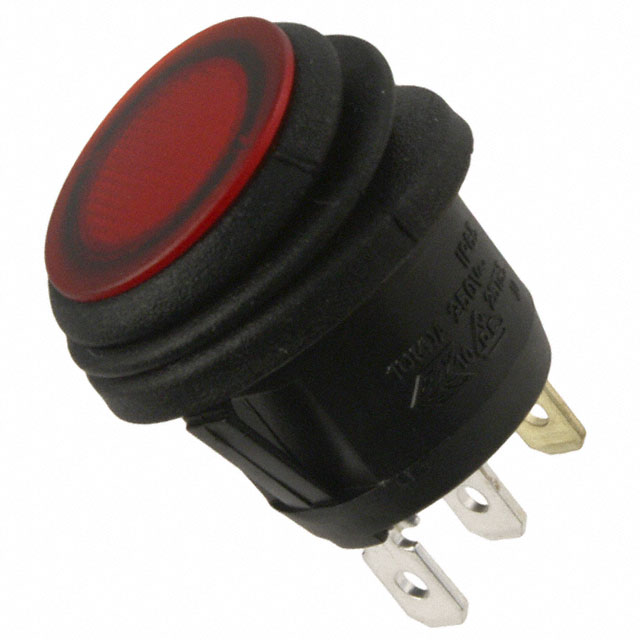

GRB112B802BR1
ActiveCW Industries
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GRB112B802BR1
ActiveCW Industries
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRB112B802BR1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round - Illuminated |
| Approval Agency | cULus |
| Circuit | SPST |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 16 A, 20 A |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 12 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 20.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.63 | |
| 10 | $ 2.36 | |||
| 25 | $ 2.24 | |||
| 50 | $ 2.13 | |||
| 100 | $ 2.03 | |||
| 250 | $ 1.94 | |||
| 500 | $ 1.93 | |||
Description
General part information
GRB112B Series
Rocker Switch SPST 16A (AC), 20A (DC) 125 V Panel Mount, Snap-In
