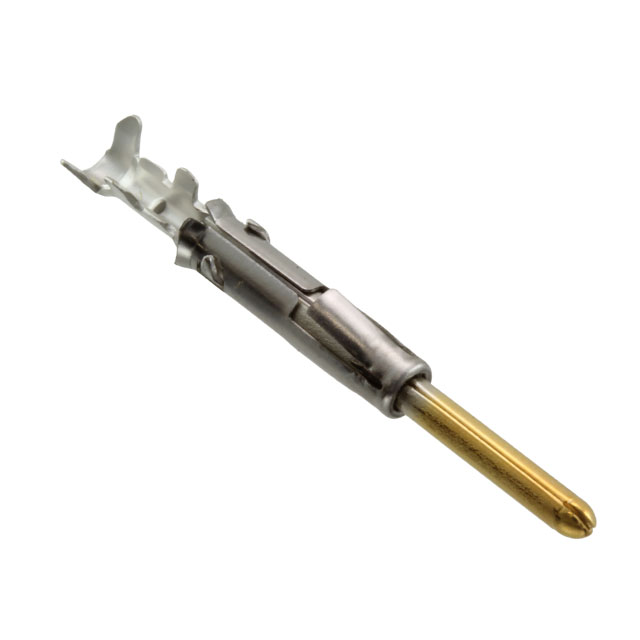

SM20M1S18
ActiveSouriau-Sunbank by Eaton
CONN PIN 20-22AWG GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
SM20M1S18
ActiveSouriau-Sunbank by Eaton
CONN PIN 20-22AWG GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM20M1S18 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.75 µm |
| Contact Finish Thickness | 29.5 µin |
| Contact Material | Copper Alloy |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.47 | |
| Tape & Reel (TR) | 3000 | $ 0.60 | ||
Description
General part information
SM20M1 Series
Pin Contact Gold Crimp 20-22 AWG Stamped
Documents
Technical documentation and resources
No documents available
