5707.0603.312.01

Active

SCHURTER Inc.

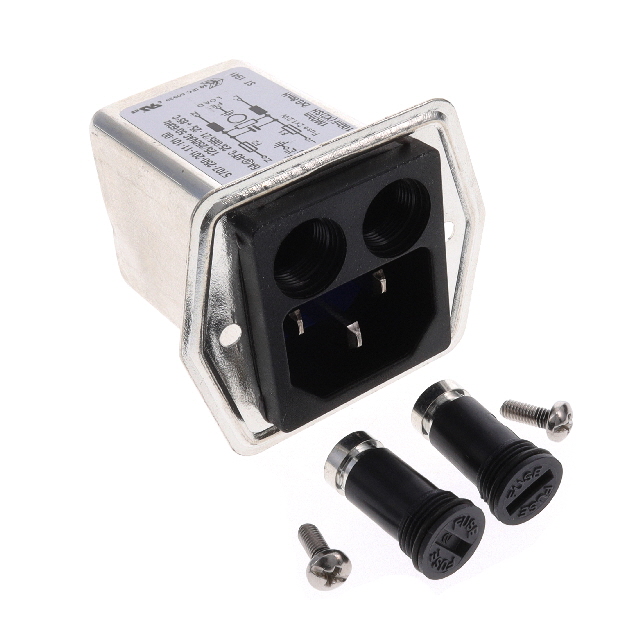

AC POWER ENTRY MODULES 5707 APPLIANCE INLET FILTER 6A M5

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

5707.0603.312.01

Active

SCHURTER Inc.

AC POWER ENTRY MODULES 5707 APPLIANCE INLET FILTER 6A M5

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5707.0603.312.01

Accomodates a Fuse	True
Approval Agency	cURus, ENEC
Connector Style	IEC 320-C18
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Number of Positions	2
Panel Thickness	3 mm
Panel Thickness	0.118 in
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

5707.0201 Series

AC Power Entry Modules 2A with filter

Part	Approval Agency	Connector Style	Ingress Protection	Filter Type	Mounting Type	Fuse Holder, Drawer	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination	Termination	Termination	Features	Current Rating - Appliance Inlet	Connector Type	Material Flammability Rating	Voltage Rating - Appliance Inlet	Current Rating - Filter	Number of Positions	Panel Thickness	Panel Thickness
SCHURTER Inc. 5707.0201.112	cULus ENEC	IEC 320-C14	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial	Flange Panel Mount	Fuse Holder	36 mm	32.2 mm	0.25 in	6.3 mm	Quick Connect	Shielded	2 A	Male Blades Receptacle	UL94 V-0	250 VAC	2 A
SCHURTER Inc. 5707.0803.412	cULus ENEC	IEC 320-C18	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial Medical	Flange Panel Mount	Fuse Holder	36 mm	32.2 mm	0.25 in	6.3 mm	Quick Connect	Shielded	8 A	Male Blades Receptacle	UL94 V-0	250 VAC	8 A	2
SCHURTER Inc. 5707.0803.312.22	cURus ENEC	IEC 320-C14	IP54	Filtered (EMI RFI) - Commercial	Flange Panel Mount	Fuse Holder	32.2 mm	29.2 mm	0.25 in	6.3 mm	Quick Connect		8 A	Receptacle Male Blades - Module	UL94 V-0	250 VAC	8 A		3 mm	0.118 in
SCHURTER Inc. 5707.0803.413	cULus ENEC	IEC 320-C18	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial Medical	Flange Panel Mount	Fuse Holder	36 mm	33.5 mm	0.25 in	6.3 mm	Quick Connect	Shielded	8 A	Male Blades Receptacle	UL94 V-0	250 VAC	8 A	2
SCHURTER Inc. 5707.0603.312.01	cURus ENEC	IEC 320-C18	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial Medical	Flange Panel Mount	Fuse Holder Twin Fused			0.25 in	6.3 mm	Quick Connect	Shielded	6 A	Male Blades Receptacle	UL94 V-0	250 VAC	6 A	2	3 mm	0.118 in
SCHURTER Inc. 5707.0803.313	cULus ENEC	IEC 320-C14	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial Medical	Flange Panel Mount	Fuse Holder	36 mm	33.5 mm	0.25 in	6.3 mm	Quick Connect	Shielded	8 A	Male Blades Receptacle	UL94 V-0	250 VAC	8 A
SCHURTER Inc. 5707.0103.312	cULus ENEC	IEC 320-C14	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial Medical	Flange Panel Mount	Fuse Holder	36 mm	32.2 mm	0.25 in	6.3 mm	Quick Connect	Shielded	1 A	Male Blades Receptacle	UL94 V-0	250 VAC	1 A
SCHURTER Inc. 5707.0103.413	cULus ENEC	IEC 320-C18	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial Medical	Flange Panel Mount	Fuse Holder	36 mm	33.5 mm	0.25 in	6.3 mm	Quick Connect	Shielded	1 A	Male Blades Receptacle	UL94 V-0	250 VAC	1 A	2
SCHURTER Inc. 5707.0803.312	cULus ENEC	IEC 320-C14	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial Medical	Flange Panel Mount	Fuse Holder	36 mm	32.2 mm	0.25 in	6.3 mm	Quick Connect	Shielded	8 A	Male Blades Receptacle	UL94 V-0	250 VAC	8 A
SCHURTER Inc. 5707.0103.412	cULus ENEC	IEC 320-C18	IP65 - Dust Tight Water Resistant	Filtered (EMI RFI) - Commercial Medical	Flange Panel Mount	Fuse Holder	36 mm	32.2 mm	0.25 in	6.3 mm	Quick Connect	Shielded	1 A	Male Blades Receptacle	UL94 V-0	250 VAC	1 A	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 38.84
		50	$ 32.10
Sager	N/A	1	$ 36.93
		19	$ 35.95
		37	$ 35.02
		185	$ 33.29
		371	$ 32.48

Description

General part information

5707.0201 Series

AC Power Entry Modules 2A with filter

Documents

Technical documentation and resources

Datasheet

Document
