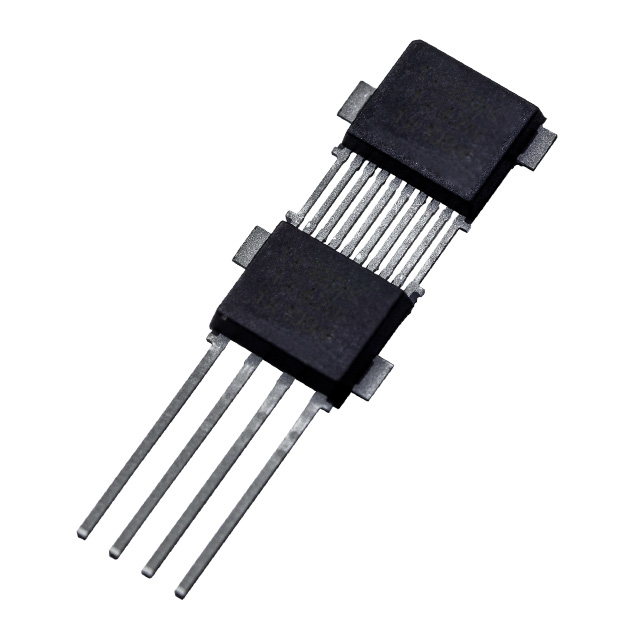

MLX90366LVS-ADU-250-RE

Active

Melexis Technologies NV

SENSOR ANGLE 360DEG PC PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet PTC-04, Daughterboard Selection Guide

MLX90366LVS-ADU-250-RE

Active

Melexis Technologies NV

SENSOR ANGLE 360DEG PC PIN

Deep-Dive with AI

DocumentsDatasheet PTC-04, Daughterboard Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MLX90366LVS-ADU-250-RE

Actuator Type	External Magnet, Not Included
For Measuring	Angle
Mounting Type	Through Hole
Output Signal	Programmable
Package / Case	4-SSIP Module
Rotation Angle - Electrical, Mechanical [Max]	360 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Supplier Device Package	4-DMP
Technology	Hall Effect
Termination Style	PC Pin
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

MLX90366 Series

Part	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	For Measuring	Actuator Type	Supplier Device Package	Output Signal	Technology	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Mounting Type	Sensing Range [y]	Sensing Range [z]	Sensing Range [x]	Current - Output (Max) [Max]	Features	Output Type	Current - Supply (Max) [Max]	Resolution	Axis [z]	Axis [y]	Axis [x]
Melexis Technologies NV MLX90366LVS-ADU-253-RE	360 °	0 °	Angle	External Magnet Not Included	4-DMP	Programmable	Hall Effect	PC Pin	4.5 V	5.5 V	4-SIP Module Formed Leads	Through Hole
Melexis Technologies NV MLX90366LVS-ADS-253-RX	360 °	0 °	Linear Rotary Position	External Magnet Not Included	4-DMP		Hall Effect	PC Pin	4.5 V	5.5 V	4-SIP Module Formed Leads	Through Hole
Melexis Technologies NV MLX90366LVS-ADS-251-RE	360 °	0 °	Linear Rotary Position	External Magnet Not Included	4-DMP		Hall Effect	PC Pin	4.5 V	5.5 V	4-SIP Module Formed Leads	Through Hole
Melexis Technologies NV MLX90366LVS-ADS-253-RE	360 °	0 °	Linear Rotary Position	External Magnet Not Included	4-DMP		Hall Effect	PC Pin	4.5 V	5.5 V	4-SIP Module Formed Leads	Through Hole
Melexis Technologies NV MLX90366LVS-ADU-250-RE	360 °	0 °	Angle	External Magnet Not Included	4-DMP	Programmable	Hall Effect	PC Pin	4.5 V	5.5 V	4-SSIP Module	Through Hole
Melexis Technologies NV MLX90366LVS-ADU-251-RX					4-DMP		Hall Effect		4.5 V	5.5 V	4-SIP Module	Through Hole	70 mT	126 mT	70 mT	30 mA	Programmable	1.81 mOhm	10 mA	12 b	Z	Y	X
Melexis Technologies NV MLX90366LVS-ADS-250-TU	360 °	0 °	Linear Rotary Position	External Magnet Not Included	4-DMP		Hall Effect	PC Pin	4.5 V	5.5 V	4-SSIP Module	Through Hole
Melexis Technologies NV MLX90366LVS-ADU-250-SP	360 °	0 °	Angle	External Magnet Not Included	4-DMP	Programmable	Hall Effect	PC Pin	4.5 V	5.5 V	4-SSIP Module	Through Hole
Melexis Technologies NV MLX90366LVS-ADU-253-RX					4-DMP		Hall Effect		4.5 V	5.5 V	4-SIP Module	Through Hole	70 mT	126 mT	70 mT	30 mA	Programmable	1.81 mOhm	10 mA	12 b	Z	Y	X

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 4.38

Description

General part information

MLX90366 Series

Hall Effect Sensor Angle External Magnet, Not Included PC Pin

Documents

Technical documentation and resources

Datasheet

PTC-04, Daughterboard Selection Guide

Datasheet
