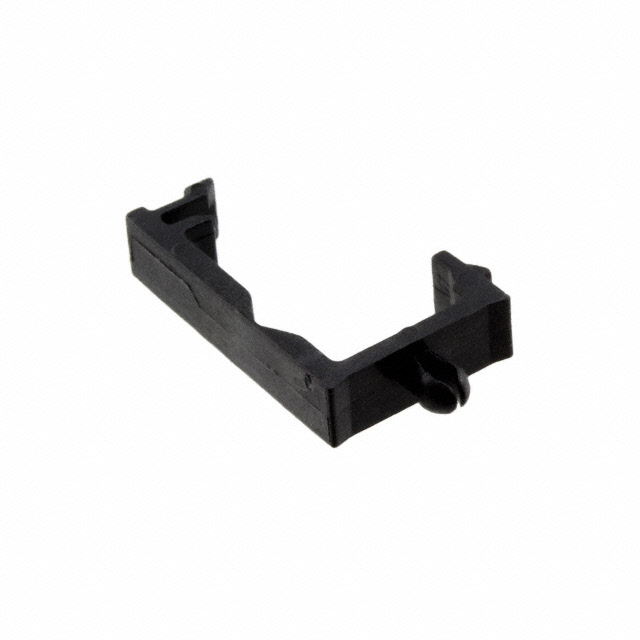

WSLT-T-01A-19

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 16.7 MM, 5.1 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 16.7 MM, 5.1 MM

Technical Specifications

Parameters and characteristics for this part

Specification	WSLT-T-01A-19

Color	Black
Features	Flame Retardant
Height [z]	8.89 mm
Height [z]	0.35 in
Length	16.76 mm
Length	0.66 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Push In
Opening Size [x]	10.41 mm
Opening Size [x]	0.41 in
Opening Size [y]	0.22 in
Opening Size [y]	5.59 mm
Panel Hole Size	0.118 in
Panel Hole Size	3 mm
Panel Thickness	1.65 mm
Panel Thickness	0.065 in
Type	Clip, Wire Saddle
Type Attributes	Hinged, Top Lock
Width [x]	5.08 mm
Width [x]	0.2 in

Part	Height [z]	Height [z]	Features	Length	Length	Mounting Type	Opening Size [y]	Opening Size [y]	Opening Size [x]	Opening Size [x]	Panel Thickness	Panel Thickness	Color	Type	Type Attributes	Material	Panel Hole Size	Panel Hole Size	Width [x]	Width [x]	Material Flammability Rating
Essentra Access Solutions WSLT-T-01A-19	8.89 mm	0.35 in	Flame Retardant	16.76 mm	0.66 in	Push In	0.22 in	5.59 mm	10.41 mm	0.41 in	1.65 mm	0.065 in	Black	Clip Wire Saddle	Hinged Top Lock	Polyamide (PA66) Nylon 6/6	0.118 in	3 mm	5.08 mm	0.2 in	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Black Push In 0.410" L x 0.220" H (10.41mm x 5.59mm)
