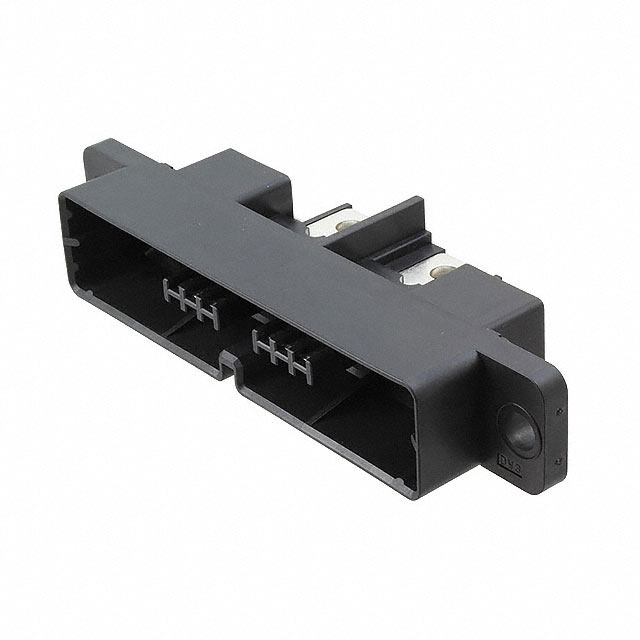

DW3P002ZH1
ActiveJAE Electronics
CONN PLUG RACK & PANEL 2P PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DW3P002ZH1
ActiveJAE Electronics
CONN PLUG RACK & PANEL 2P PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DW3P002ZH1 |
|---|---|
| Color | Black |
| Connector Style | Rack and Panel |
| Connector Type | Female Sockets, Plug |
| Contact Finish | Silver |
| Current Rating (Amps) | 150 A |
| Features | Polarizing Key |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 20 | $ 30.89 | |
Description
General part information
DW3P002Z Series
2 Connector Plug, Female Sockets Panel Mount Black Rack and Panel
Documents
Technical documentation and resources
No documents available
