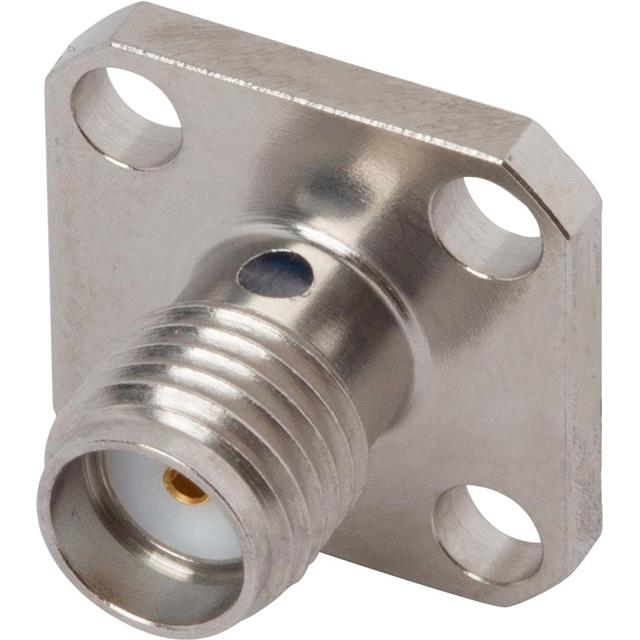

SF2950-6081
ActiveAmphenol SV Microwave
CONN SMA JACK STR 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF2950-6081
ActiveAmphenol SV Microwave
CONN SMA JACK STR 50OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF2950-6081 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.04 | |
| 10 | $ 14.22 | |||
| 25 | $ 13.67 | |||
| 40 | $ 13.13 | |||
| 80 | $ 12.40 | |||
| 250 | $ 11.30 | |||
| 500 | $ 10.57 | |||
| 1000 | $ 9.70 | |||
Description
General part information
SF2950 Series
SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
Documents
Technical documentation and resources
