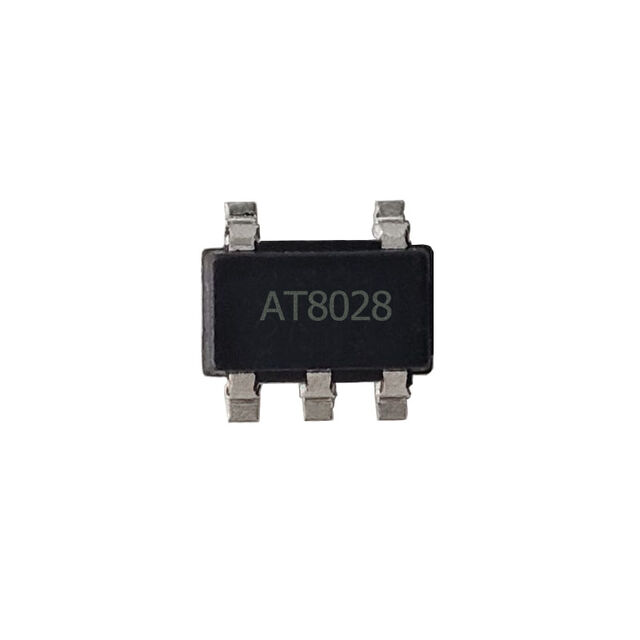

AT8028
ActiveAnalog Technologies, Inc.
1.5A 2MHZ 5.5V SYNCHRONOUS BUCK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AT8028
ActiveAnalog Technologies, Inc.
1.5A 2MHZ 5.5V SYNCHRONOUS BUCK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AT8028 |
|---|---|
| Current - Output | 1.5 A |
| Frequency - Switching | 2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.6 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.30 | |
| 10 | $ 1.16 | |||
| 25 | $ 1.10 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.59 | |||
| 2500 | $ 0.55 | |||
| 5000 | $ 0.52 | |||
Description
General part information
AT8028 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1.5A SC-74A, SOT-753
