902-0157-000

Active

ROBOTIS

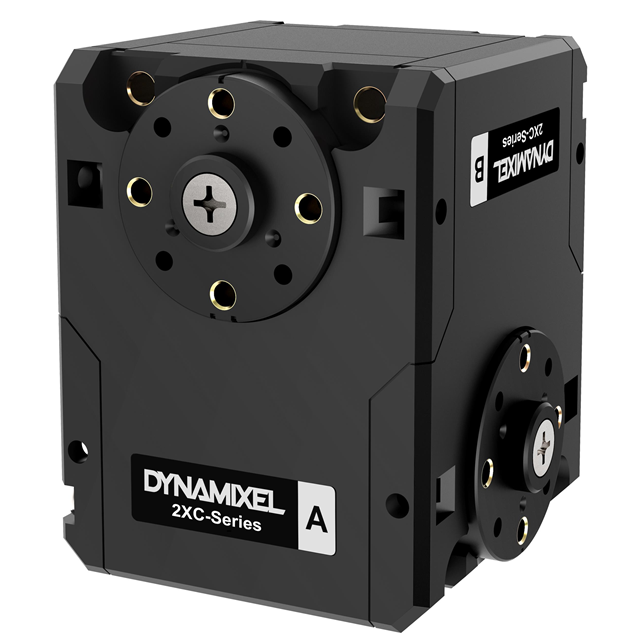

2XC430-W250-T DYNAMIXEL SERVO

Search across all available documentation for this part.

Active

ROBOTIS

2XC430-W250-T DYNAMIXEL SERVO

Technical Specifications

Parameters and characteristics for this part

Specification	902-0157-000

Encoder Type	Absolute
Features	Integrated Controller
Function	Servomotor
Gear Reduction Ratio	257.4
Motor Type	Brushed
Operating Temperature [Max]	72 °C
Operating Temperature [Min]	-5 °C
RPM	64 RPM
Size / Dimension [x]	46.5 mm
Size / Dimension [x]	1.83 in
Size / Dimension [y]	1.417 in
Size / Dimension [y]	36 mm
Termination Style	Connector
Torque - Max Momentary (oz-in / mNm)	254.9 oz-in
Torque - Max Momentary (oz-in / mNm)	1800 mNm
Type	DC Motor
Voltage - Rated	12 VDC
Weight	102 g
Weight	0.225 lb

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Motor Type	Gear Reduction Ratio	Operating Temperature [Max]	Operating Temperature [Min]	Features	Encoder Type	Weight	Weight	RPM	Termination Style	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Voltage - Rated	Function	Type
ROBOTIS 902-0157-000	1.417 in	46.5 mm	36 mm	1.83 in	Brushed	257.4	72 °C	-5 °C	Integrated Controller	Absolute	102 g	0.225 lb	64 RPM	Connector	254.9 oz-in	1800 mNm	12 VDC	Servomotor	DC Motor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 259.90

General part information

Brushed DC Motor Servomotor 64 RPM Absolute 12VDC

Technical documentation and resources

No documents available
